Product Details:
Payment & Shipping Terms:
|
| Material: | Metal | Color: | Grey |
|---|---|---|---|
| Ports Number: | 4 Or 8 Ports | Adapter: | FC,SC,ST,LC Adapter |
| High Light: | optical terminal boxes,fiber optic equipments |
||

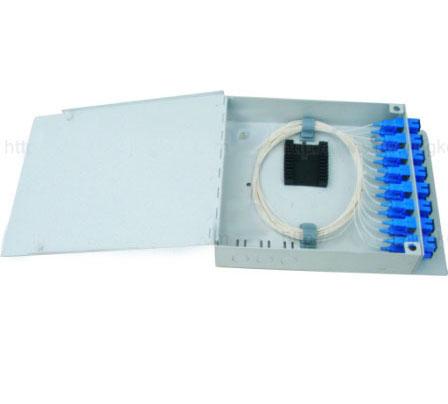

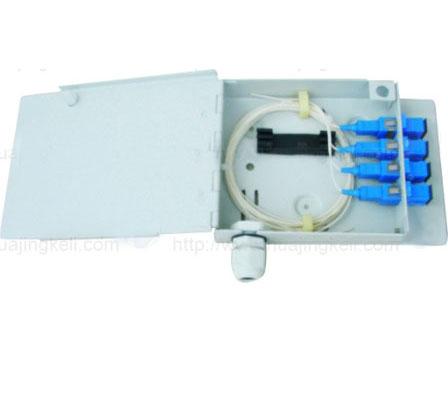

1. Descriptions:
The FTTH metal series are available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.
2. Features :
-Small size, light weight, pleasing in appearance
-Wall mounted with mechanical protection function
-Max fiber capacity 4-16 fibers, 4-16 adapter output
-Available for FC, SC, ST, LC adapters
-Hinge and convenient press-pull button lock design.
3.Order information
| Type | Dimension(mm) | Cable diameter(mm) | Cable ports | Suitable adapter | Max capacity |
| FTB-104 | 140*105*28 | φ5-10 | 1 | SC/FC/ST | 4 |
| FTB-108 | 200*148*30 | φ5-10 | 2 | SC/FC/ST | 8 |
| FTB-116 | 245*200*48 | φ5-10 | 3 | SC/FC/ST | 16 |
| FTB-104A | 115*135*41.5 | φ5-10 | 2 | SC/FC/ST | 4 |
| FTB-108A | 115*135*41.5 | φ5-10 | 2 | SC/FC/ST | 8 |
| FTB-CA104/108 | 180*130*30 | φ5-10 | 2 | SC/FC/ST | 8 |
