Zinc Alloy LC-SC Simplex Fiber Optic Adapter With Ceramic Ferrule

Zinc Alloy LC-SC Simplex Fiber Optic Adapter With Ceramic Ferrule
Zinc Alloy LC-SC Simplex Fiber Optic Adapter With Ceramic Ferrule
video play

Large Image :  Zinc Alloy LC-SC Simplex Fiber Optic Adapter With Ceramic Ferrule

Product Details:
Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: LC-SC SX
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: USD1.12-3.24/PCS
Packaging Details: Plastic Box
Delivery Time: in 3-5 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 4.5 MIllion PCS / Month
Contact Now
Detailed Product Description
Material: Zinc Alloy Type: LC-SC Hybrid Adapter
Certification: ISO9001:2008
High Light:

fiber optic coupler

,

optical fiber adapter

Zinc Alloy LC-SC Simplex Fiber Optic Adapter With Ceramic Ferrule


Application:

  • Optical fiber communcation network,data transmission,
  • test equitments,LAN,CATV.


Description:
Fiber optic adapter is used for the connection and coupling between fiber active connectors. Choose proper type according to the splice of optical fiber active connector.Good agglomeration technic to ensure the best quality,high intensity and stability.


Features:

  • Low insertion loss;
  • Good repeatability and interchangeability;
  • Good environmental stability.



Specification:


rameter Unit LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, MTRJ E2000
SM MM SM MM SM
PC UPC APC PC PC UPC PC PC APC
Insertion Loss (Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Repeatability dB ≤0.2 ≤0.2 ≤0.2
Durability Time ＞1000 ＞1000 ＞1000
Operating Temperature ℃ -40~75 -40~75 -40~75
Storage Temperature ℃ -45~85 -45~85 -45~85


Ordering Information:

  • For example:LC-SC, single mode, SX  hybrid adapter
  • Connector type: FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
  • Ferrule end-face: PC,UPC,APC
  • Core type: Single-mode(SM:9/125μm), multimode(MM:50/125μm or 62.5/125μm)
  • Appearance: with ear type, no ear type;
  • Material: copper alloy, zinc alloy, plastic.

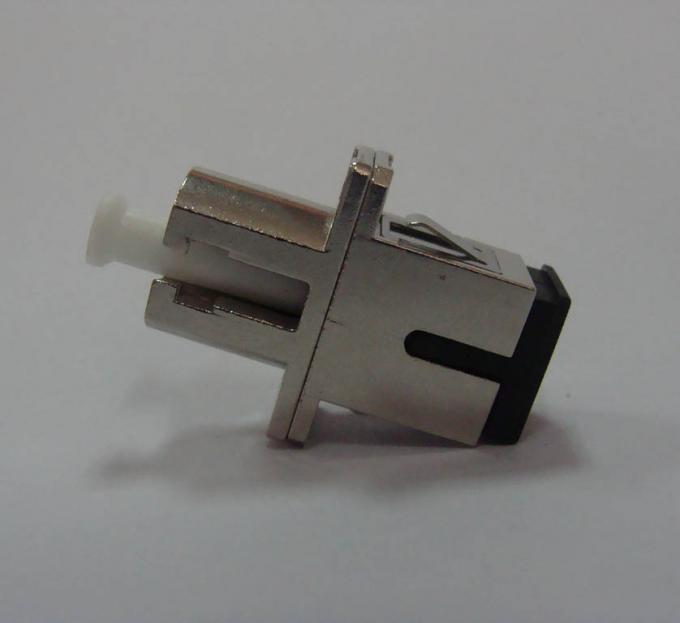

Zinc Alloy LC-SC Simplex Fiber Optic Adapter With Ceramic Ferrule 0

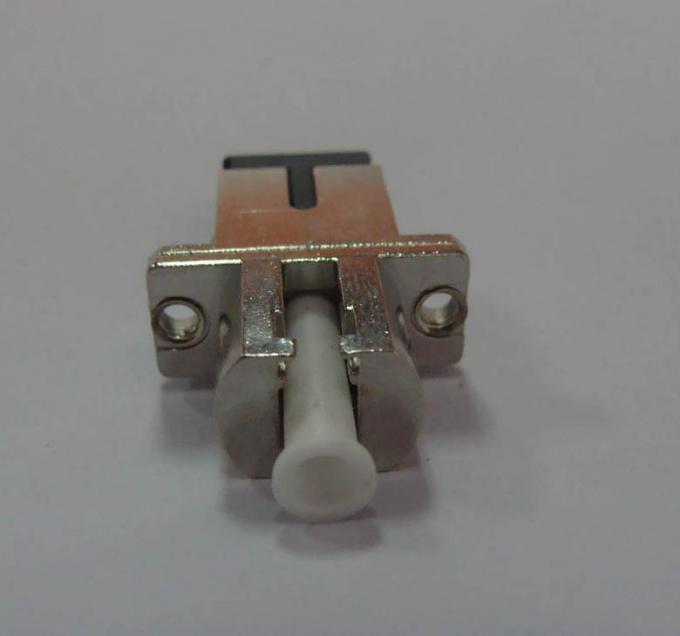

Zinc Alloy LC-SC Simplex Fiber Optic Adapter With Ceramic Ferrule 1
