SC / PC ST / PC Duplex Fiber Optic Adapter For FTTH Network / LAN

China SC / PC ST / PC Duplex Fiber Optic Adapter For FTTH Network / LAN supplier
SC / PC ST / PC Duplex Fiber Optic Adapter For FTTH Network / LAN supplier SC / PC ST / PC Duplex Fiber Optic Adapter For FTTH Network / LAN supplier

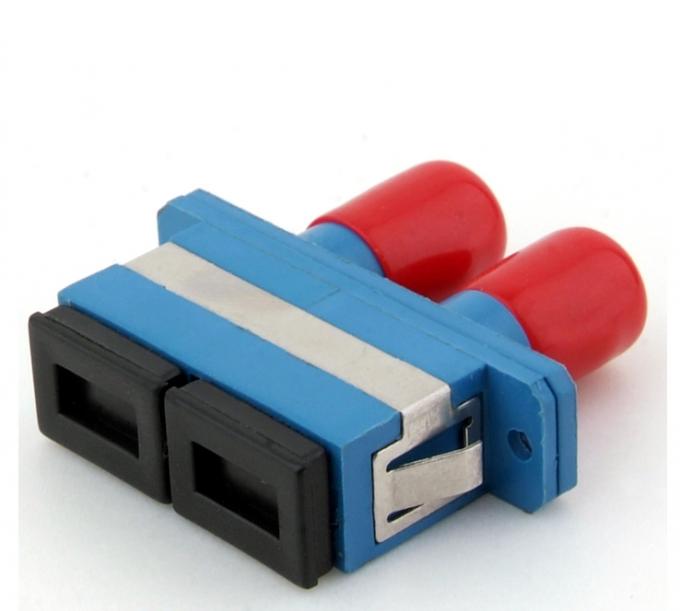

Large Image :  SC / PC ST / PC Duplex Fiber Optic Adapter For FTTH Network / LAN

Product Details:

Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: SC-ST DX

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Price: USD1.12-3.24/PCS
Packaging Details: Plastic Box
Delivery Time: in 3-5 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 4.5 MIllion PCS / Month
Contact Now
Detailed Product Description
Material: Plastic Type: SC-ST Hybrid Adapter
Certification: ISO9001:2008
High Light:

fiber optic coupler

,

st fiber adapter

SC / PC ST / PC Duplex Fiber Optic Adapter For FTTH Network / LAN





Product Features:



-Low insertion loss;

-Good repeatability and interchangeability;

-Good environmental stability.



Description:


Fiber optic adapter is used for the connection and coupling between fiber active connectors. Choose proper type according to the splice of optical fiber active connector.Good agglomeration technic to ensure the best quality,high intensity and stability.



Application:

  • Optical fiber communcation network,data transmission,
  • test equitments,LAN,CATV.



Specification:



rameter Unit LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, MTRJ E2000
SM MM SM MM SM
PC UPC APC PC PC UPC PC PC APC
Insertion Loss (Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Repeatability dB ≤0.2 ≤0.2 ≤0.2
Durability Time >1000 >1000 >1000
Operating Temperature -40~75 -40~75 -40~75
Storage Temperature -45~85 -45~85 -45~85



Ordering Information:

  • For example:SC-ST, single mode, DX hybrid adapter
  • Connector type: FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
  • Ferrule end-face: PC,UPC,APC
  • Core type: Single-mode(SM:9/125μm), multimode(MM:50/125μm or 62.5/125μm)
  • Appearance: with ear type, no ear type;
  • Material: copper alloy, zinc alloy, plastic.
