Quad Small Form-factor Pluggable 100G SR4 transceiver module

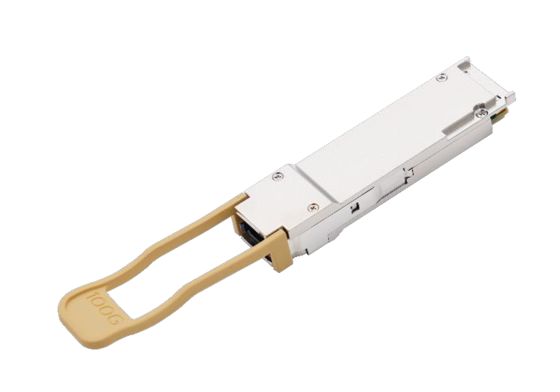

Large Image : Quad Small Form-factor Pluggable 100G SR4 transceiver module

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	CY COM
Certification:	ISO9001:2015, ISO14001:2015, ROSH
Model Number:	QSFP28 100G SR4

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Packaging Details:	Plastic box and Carton box
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union
Supply Ability:	50k/Month

Contact Now

Detailed Product Description

Form Factor::	QSFP28	Transceiver::	SR4
Interface::	MPO	Media::	MMF
Reach/km::	0.1km	Power Consumption/W::	3.5
Temperature/℃::	0 To 70
Highlight:	100G QSFP SR4 transceiver module , QSFP fiber optic transceiver , 100G SR4 optical transceiver module

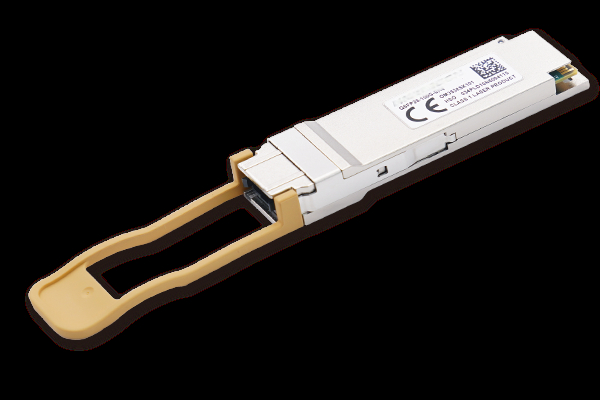

Quad Small Form-factor Pluggable 100G SR4 Transceiver Module

OM3538SX101 is a parallel full-duplex 100GE Quad Small Form-factor Pluggable (QSFP28) transceiver designed for short-range multi-lane data communication. It offers four independent data lanes based on 850 nm VCSEL/PD array technology, and each lane is capable of 25GE operation for an aggregate data rate of 100GE over 100 m OM4 MMF, 70 m OM3 MMF.

OM3538SX101 is compliant with the QSFP28 MSA and IEEE 802.3bm, PMD Type 100GBASE-SR4 and CAUI-4, integrating DDM function for real-time performance monitoring and troubleshooting.

Figure 1-1: Transceiver block diagram

Pin Descriptions

OM3538SX101 is a hot-pluggable QSFP28 transceiver. Hot pluggable refers to plugging in or unplugging a module while the host board is powered. The QSFP28 host connector is a 0.8 mm pitch 38 position right angle improved connector specified by SFF-8661. QSFP28 module contacts mate with the host in the order of ground, power, followed by signal.
