Blue Fiber Optic Adapter Single Mode Fiber Optic Network Adapter Duplex SC / UPC

Name: Blue Fiber Optic Adapter Single Mode Fiber Optic Network Adapter Duplex SC / UPC
Brand: CY COM
SKU: SC DX adapter
Price: 0.12 USD
Availability: InStock
Rating: 4.9 (132 reviews)

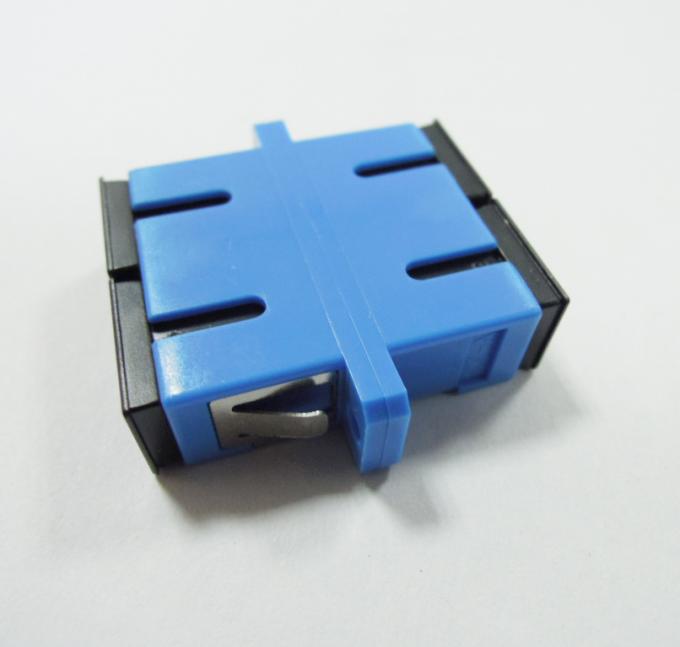

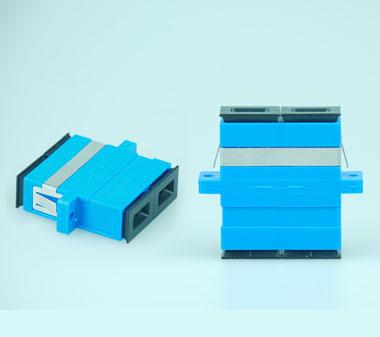

Large Image : Blue Fiber Optic Adapter Single Mode Fiber Optic Network Adapter Duplex SC / UPC

Product Details:

Place of Origin:	Shenzhen , China
Brand Name:	CY COM
Certification:	ISO9001:2015 , RoHS
Model Number:	SC DX adapter

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	USD0.12-0.24/PCS
Packaging Details:	Plastic Box
Delivery Time:	in 5-10 days
Payment Terms:	L/C,T/T,Western Union payments for offline orders.
Supply Ability:	4.5 MIllion PCS / Month

Contact Now

Detailed Product Description

Color:

Blue

Structure:

Duplex

Certification:

ISO9001:2008

Material:

RoHS

High Light:

fiber optic coupler

st fiber adapter

Blue Fiber Optic Adapter Single Mode Fiber Optic Network Adapter Duplex SC / UPC

Description:

￭ SC mode used pluggable tight locking structure ；
￭ Low insertion loss,high stability;
￭ Good in repeatability and exchangeability ;
￭ Ceramic or Bronze Sleeve

Application:

Optic LAN
Optical fiber communcation network,data transmission,
test equitments,LAN,CATV.

Specification:

rameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC,				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	＞1000				＞1000			＞1000
Operating Temperature	℃	-40~75				-40~75			-40~75
Storage Temperature	℃	-45~85				-45~85			-45~85
