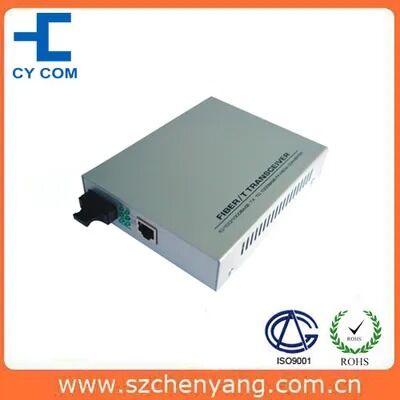

Optical Fiber Media Converter (10/100/1000Base-Tx to 1000Base-LX 1550nm Single mode 60Km)
| Model NO.: | CMC-GS60 | Application: | Communication |
| Type: | Sm & Mm | Connection Structure: | FC,Sc,LC ,St |
| Allowed Lateral Pressure: | >1000(N/100mm) | Allowed Tensile Strength: | 1000N<10000N |
| Brand: | Cy , OEM | Distance: | 224/ 550m,20/40/60/80/100km |
| Wavelength: | 850nm,1310nm,1550nm | Specification: | CE, SGS, RoHS |
| Origin: | Shenzhen China | ||
| High Light: | single mode fiber media converter,1000Base-LX media converter 60Km,10/100/1000Base-Tx to fiber converter |
||
10/100/1000M Gigabit Optical Fiber Media Converter
CY Series Gigabit Fiber Media Converter can convert Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M optical fiber interface (FX). The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 100km through optical fiber link.
The performance and quality of the products are excellent because of adopting latest Gigabit IC from USA and Taiwan. 6 Group LED indicated lights could fully monitor the working conditions of converters. It is easy for users to observe and diagnose the failure of converters.
CY Series Gigabit Converters could be used alone; But Converter Card should be inserted to 16 slots RACK supplied by CY Crop. Which is suitable for the use of Network Centre.
- The transmission of a channel signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber.
- Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
- The UTP port supports the connection of MDI/MDI-X auto crossover.
- Multimode Fiber: The max distance up to 224m/550m
- Singlemode Fiber: The max distance up to 100km
- Supporting the max 1536 byte Ethernet packet
- Supporting flow control
- Adopting internal power supply
| Operating standards | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit |
|---|---|
| Wavelength | 850nm/1310nm/1550nm |
| MAC address table | 4K |
| Data Buffer | 256K |
| Connector | UTP: RJ-45, 10/100/1000Mbps; Fiber: SC, 1000Mbps |
| Cable |
UTP cable: Cat 5e or Cat 6 (the max distance up to 100m) Fiber: Multimode: 50/125, 62.5/125μ M (the max distance up to 550/224m) Singlemode: 8.3/125, 8.7/125, 9/125μ M (the max distance up to 120km) |
| Flow control |
Full Duplex: IEEE802.3X Half Duplex: Back pressure |
| Conversion mode | Medium conversion |
| Delay | <10μ S |
| Bit error rate | <1/1000000000 |
| MTBF | 80,000 hours |
| LED Indicators |
POWER (power), FX LINK (fiber link action), TP LINK1000 (twisted pair connection 1000M), TP LINK100 (twisted pair connection 100M), TP ACT (twisted pair packet forwarding action), FDX (Ethernet interface mode indicator ON, Full duplex/ OFF, Half duplex) |
| Power Requirement |
Input: AC 170 ~ 240V or DC -36V-72V Output: DC 5V 2A Power consumption: 5W |
| Environmental Specifications |
Ambient temperature: 0 ~ +50°C Storage temperature: -20 ~ +70°C Humidity: 5% ~ 90% |
| Dimensions |
Internal power: 30×110×140mm External power: 26×70×93mm |
-
