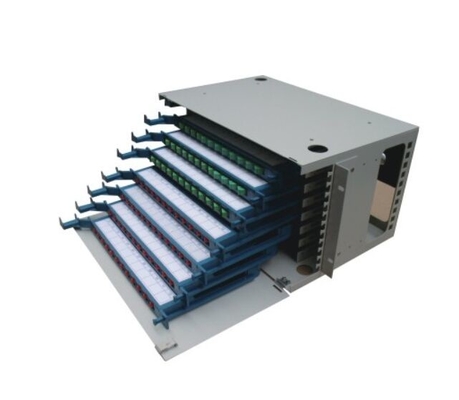

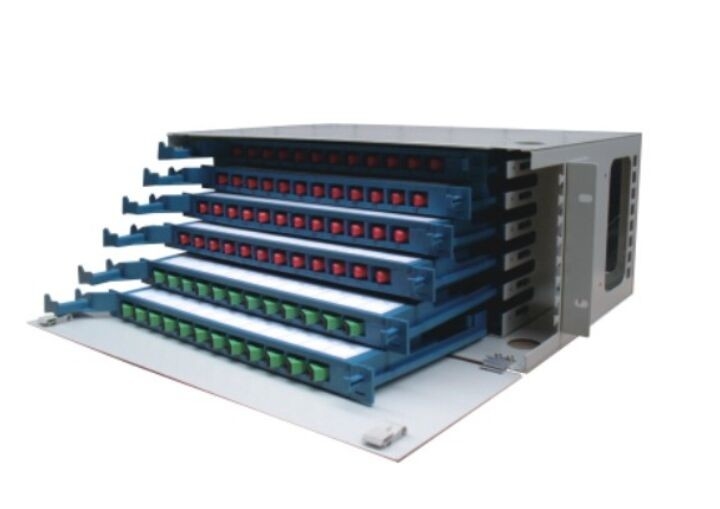

96 Core ODF Optical Distribution Frame
| Max qty of splice tray: | 8 PCS | Max capacity: | 96 Core |
| Dimensio: | 480*300*2U/3U/4U/6U | Supply adaptors: | SC/LC/ST |
| Material: | Cold Rolling Steel Sheet | Capacity of splice try: | 12 SC-SX Or 12 LC-DX |
| High Light: | 96 core ODF Optical Distribution Frame,96 core ODF,96 core Optical Distribution Frame |
||
19'' Fiber ODF Unit Series Box GB-B-24/48/72/96 core
Information:
- Cabinet is made of sheet metal, good appearance
-
The standard 19 "installation method, flexible configuration
- Unit bodies facilitate installation & maintenance;
-
Splice marks and optical path marks are clear and complete, easy to maintenance and management
-
With sufficient optical storage space, ensure radius of curvature of cable & fiber;
Dimension :
| Model | Net size(mm) | Inner carton weight (kg) | Outer carton dimension(mm) | Outer carton weight(kg) | No. of units per carton (pcs) |
| GB-B-24 | 480*280*2U | 5.7 | 450*340*480 | 24.3 | 4 |
| GB-B-48 | 480*280*3U | 7.7 | 500*350*540 | 24.6 | 3 |
| GB-B-72 | 480*280*4U | 9.8 | 500*350*460 | 21.1 | 2 |
| GB-B-96 | 480*280*6U | 13.7 | 500*350*460 | 28.9 | 2 |

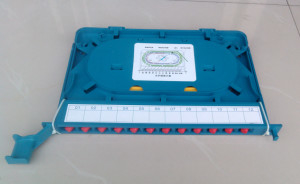

Welding &distribution module in integration
Material: ABS
Weight: 0.5kg
Plastic structure, legerity with perfect appearance, easy for installation of inlay, convenient to expand capacity, obliquity of adapter is 30°, which ensure the bend radius of patch cord and avoid laser burning eyes. Kinds of splicing and distribution mark,easy to make fusion and distribution record.
-
Ybulk purchase for long time,good service.reliable quality!
-
DGood Durability,have a dedicated after-sales team.
-
MThe Product portfolio have been upgraded,Production lead time had been optimized,more flexible.
