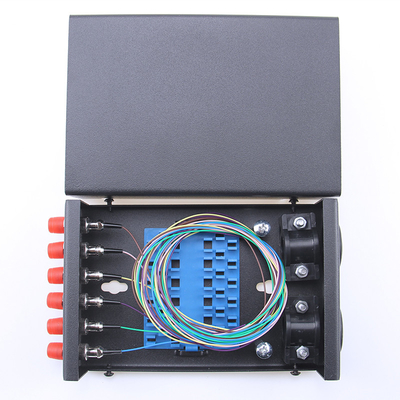

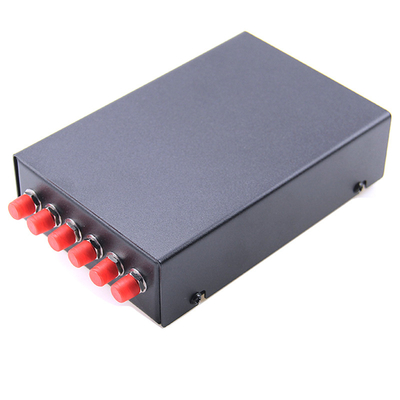

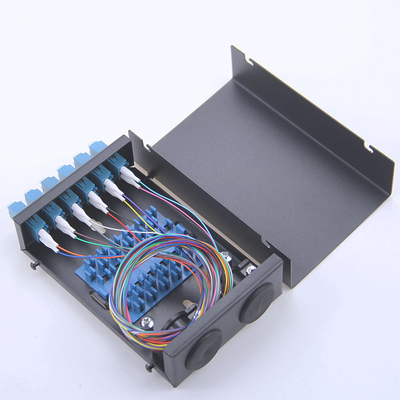

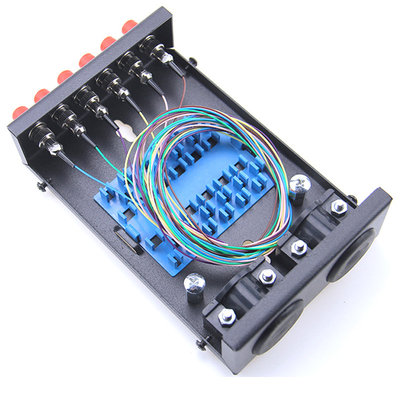

Indoor 12 Cores FC SC LC 6 Port Wall Mount Patch Panels

Indoor 12 Cores FC SC LC 6 Port Wall Mount Patch Panels

Indoor 6 Cores Full Desktop Fiber Optical Wall Mount Patch Panel With Adapter Pigtail FC SC LC 6 Port

Description:

• Four fiber terminal box, the overall electrostatic pensu processing, solid structure.beautiful appearance.
• Flexible configuration, overlay structure is used to weld flange, simple operation, easy to use
• Powerful, can choose the FC, ST type adapter.with cable metal sheath outside the earth wire leading to function.
• With sufficient impact strength of the box body is fixed, installation convenience for the different occasions.
• Can choose of hanging wall, installed racks or placed directly to the trough a variety of ways
• Provide protective connection of cable and wiring tail fiber.
• The box body made of manufacture electrostatic painting, nice appearance
• Quality assurance, chassis electrostatic pensu processing, appearance and generous

Features:

1) Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.

2) The box has a pothook, which is convenient to install and dismantle.

3) The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray.

4) The box is of unique structure, reasonable layout, and has adequate room for operation.

5) Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly.

6) The indoor type is of excellent seal performance, which could prevent water from entering effectively.

Product performance:

Material: high quality 1.0mm thickness steel plate, plastic optical fiber fused fiber plate, material is qualitative soft, good toughness.

Operating environment: -25~+40°C relative humidity: (/=85% (+30°C)

insulation resistance: Cable terminal box metal components and fiber optic cable core metal is strong, fiber optic cable between the

metal accessories, cable metal components and between the insulation resistance should be greater than 2*104 MΩ.

Dielectric intensity: Cable terminal box metal components and fiber optic cable core metal is strong, fiber optic cable between the metal accessories, fiber optic cable between metal artifacts and to under the dc voltage of 15 kv, 1 min not breakdown.

Specification:
