125μM 40dB Double Mode FTTX Fiber Optic Connector Assembly
| Product name: | Fast Connector | Color: | Blue |
| Connector: | SC UPC | Length: | 55MM |
| Insertion cycle: | More Than 1000 Times | Application: | Telecom Networks FTTX CATV |
| High Light: | FTTX Fiber Optic Connector Assembly,40dB Optic Connector Assembly,125μM Optic Connector Assembly |
||

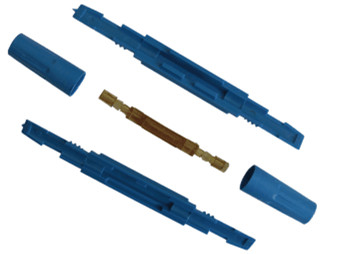

The Fiber Optic Mechanical Splicer is used for fast splice and has very good performance. Mechanical splicer can realize mechanical splice, Compared with the traditional hot melt technology, the biggest advantage is no welding machines to be needed, the power supply and other hard conditions. Anyway it can simply realize splice by manual and make the construction convenient. It can greatly reduce the cost of welding at the same time.
| Fiber Optic Mechanical Splicer | |
| IL | ≤0.15dB |
| RL | ≥40dB |
| Optical fiber diameter | 125μm |
| Operating Mode | Single and double mode |
| Tensile strength | >3kg |
| Operating Temperature | -40~+85℃ |
| Fiber tight strength | >250g |
- Substitute for operation of embedded optical fiber connector for live and reduce the cost.
- For cable damage
- Easy for connection by simple and exquisite V-groove structure
- The selection of high quality optical fiber match liquid which is less volatile ensures the long-term to work.
- No need connection tool
- Tensile strength is 3kg max
- Stability of connection by stainless holder
- Easy for re-assembling & disassembling without special tool
- Can be reconnected in the field
Telecom network
Data network
Data transmission
LAN
Test Equipment
-
