Rectangle E2000 Female Hybrid Fiber Sc To Lc Adapter
| Item: | SC-LC Hybrid Adapter | SC Side: | Female |
| LC Side: | Female | Shape: | Rectangle |
| SC Material: | Zinc Alloy Or Plastic | LC Material: | Zinc Alloy Or Plastic |
| Fiber type: | Singlemode / Mutilmode | Type: | Simplex |
| High Light: | Hybrid fiber sc to lc adapter,E2000 fiber sc to lc adapter,E2000 Hybrid sc to lc adapter |
||
Rectangle E2000 Female Hybrid Fiber Sc To Lc Adapter
SC Female to LC Female Hybrid SC-LC Fiber optic Adapter , Zinc alloy Metal Or Plstic material Coupler
Description:
Springoptic’s Fiber optic adapter fiber optic adapter pdoduce diversfied types of adapters including FC,SC,ST,LC,MU,MTRJ,E2000,DIN,D4,MPO,FC-SC,FC-ST,SC-ST,LC-FC,LC-SC etc.Integrative construction of connector,good and low insertion loss and high returnloss can satify the requirements of fast,exact,lastingand stable connection in different environments!
We provide Products, AS LC-SC/APC,LC-SC/PC,ST-LC,FC-LC,ST-SC,FC-SC,ST-FC ,etc.
Features:
Low insertion loss
High corrosion resistance
High interface performance
High return loss
Easy to handle
Environmentally stable
Sleeve material: Zirconia
Housing Material: High Quality Plastic/metal
Application:
Fiber Optic Transmission Network;
Optical Fiber Lan;
Optical fiber testing instrument;
Communication Workshop
Specification:
| Product | Hybrid Adapter | |
| Mode | S.M | M.M |
| Insertion Loss | ≤0.2dB | ≤0.3dB |
| Mating Durability(1000times) | Additional Loss≤0.1dB,Return Loss Variability<5dB | |
| Temperature Stability(-40°C~85°C) | Additional Loss≤0.2dB,Return Loss Variability<5dB | |
| Operating Temperature | -40°C ~ +85°C | |
| Storage Temperature | -40°C ~ +85°C | |

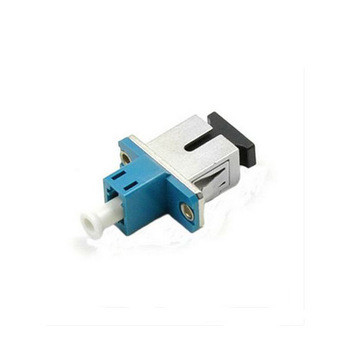

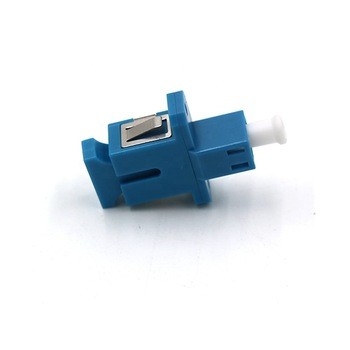

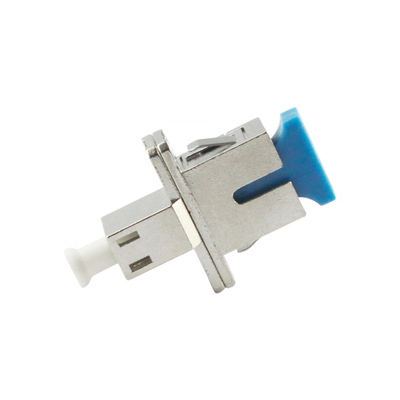

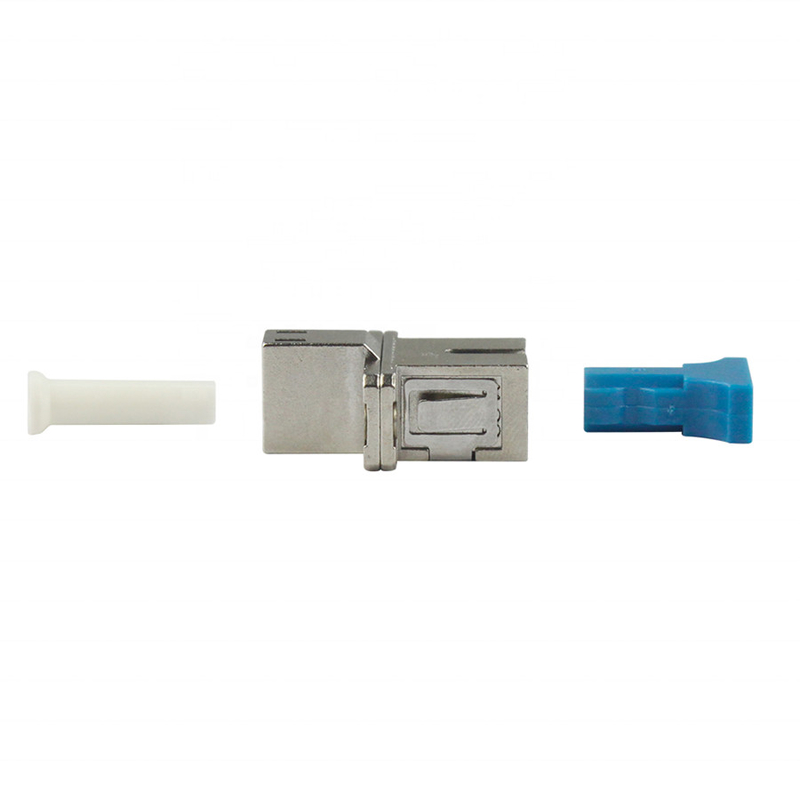

Drawing and Pictures:
-
