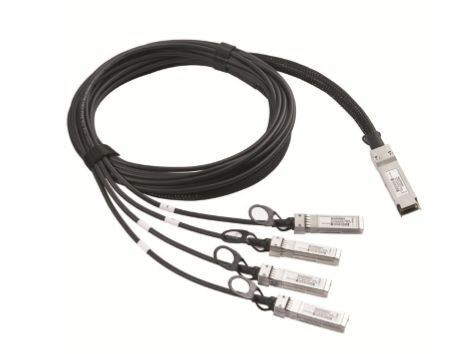

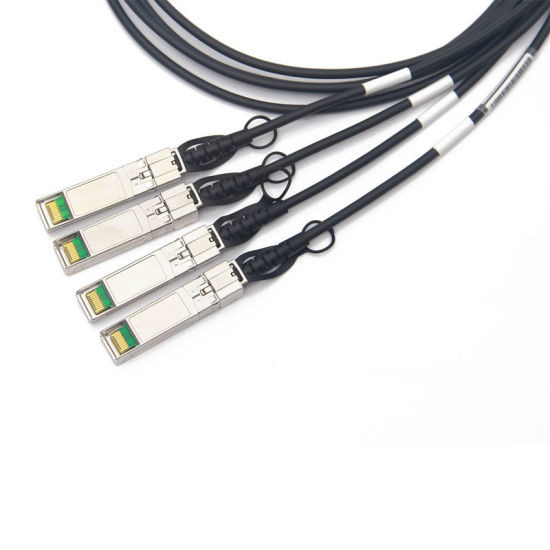

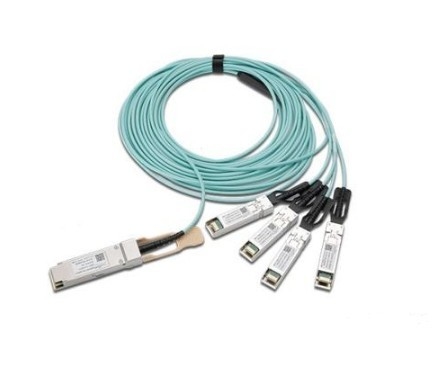

QSFP 4X10G AOC15M Breakout Active Optical Cable
| Model Number:: | QSFP-4X10G-AOC15M | Connector Type:: | QSFP+ To 4 SFP+ |
| Data rate:: | 40G To 10G | Minimum Bend Rate:: | 7.5mm |
| Conductor Material:: | Copper | Temp:: | 0℃ To +70℃ |
| High Light: | QSFP 4X10G AOC15M,QSFP Breakout Active Optical Cable,QSFP Breakout AOC |
||
QSFP 4X10G AOC15M Breakout Active Optical Cable
QSFP-4X10G-AOC15M Free post shipping Compatible 40G QSFP+ to 4x10G SFP+ Breakout Active Optical Cable AOC cable
Product Description
QSFP + Active Optical Cables (AOCs) are active optical cables of the QSFP + interface. The module has a photoelectric conversion device inside to convert the electrical signals into optical signals and transmit distances up to 100 meters. The products have four channels, each channel transmission rate up to 10Gb / s, rate of 40Gb / s. Its low power consumption, low bit error rate, easy to manage, high-performance features are widely used in short distance high-speed connection such as 10 Gigabit Ethernet, 10 Gigabit switches, 10 Gigabit servers, supercomputers, cloud computing and cloud storage networks.
Compatible QSFP-4X10G-AOC15M Vendor Name OBDMAN
Connector Type QSFP+ to 4 SFP+ Max Data Rate 40Gbps
Cable Length 15M Minimum Bend Radius 7.5mm
Jacket Material OFNP Temperature 0 to 70°C (32 to 158°F)
HTS-Harmonized Code 8517622990
Protocols 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel
-
CLow Loss insertion,good quality!reliable supplier!
-
OShip fast,good cost-effective.great sale-after service.
-
MThe Product portfolio have been upgraded,Production lead time had been optimized,more flexible.
