40GBase AOC Active Optical Cable
| Model Number: | 40G QSFP+ OM2 Cable | Data transfer rate: | 40Gbps |
| Material: | Stainless Steel | Fiber Type: | OM2 |
| Wavelength: | 850nm | Temp: | 0~70 |
| High Light: | 40GBase AOC Active Optical Cable,40GBase AOC,40GBase Active Optical Cable |
||

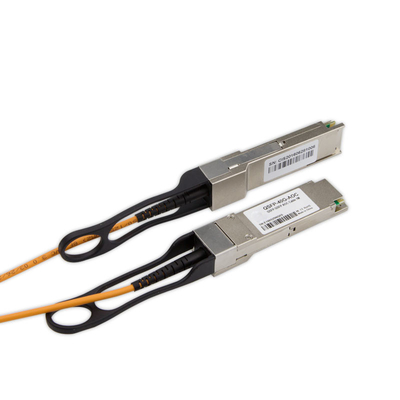

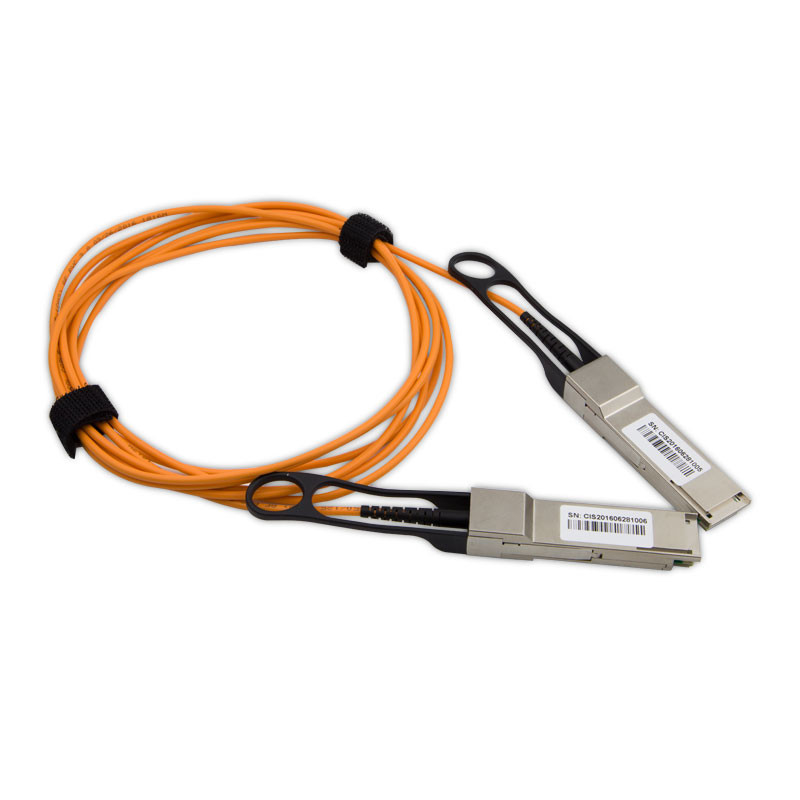

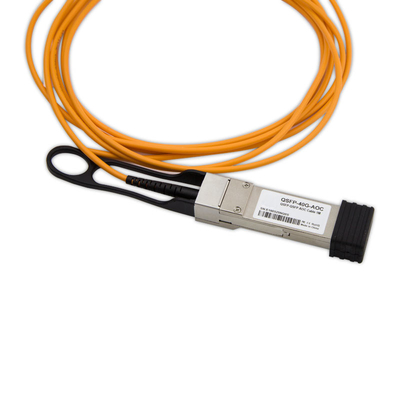

40GBase AOC QSFP+ Direct-attach Active Optical Cable, 10-meter
40G QSFP+ OM2 Cable are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. NEME's QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
Features
* Electrical interface compliant to SFF-8431
* Hot Pluggable
* 850nm VCSEL transmitter, PIN photo-detector receiver
* Up to 300m on OM3 MMF
* Operating case temperature: 0 to 70°C
* All-metal housing for superior EMI performance
* RoHS compliant (lead free)
Applications
* InfiniBand QDR (4 x 10G), DDR (4 x 5G) and SDR (4 x 2.5G) interconnects
* High Performance and High Productivity computer interconnects
* Data Aggregation, Backplane and Proprietary Density Applications
* PCI-Express, SAS/SATA, Fibre Channel compatible interconnect
* Datacom and Telecom switch and router backplane connections
-
