12 Colors ST Ribbon Fan Out Single Mode Fiber Pigtails

Basic Properties
Place of Origin: Shenzhen China
Brand Name: CY COM
Certification: ISO9001:2015 , ISO14001:2015, RoHS,SGS
Model Number: ST FC SC LC
Trading Properties
Minimum Order Quantity: 10PCS
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000pcs per day
Tags

fiber optics cable connectors

fiber optic fc connector

optical fibre pigtail
Specifications
Length: 1m Or Customized Cable color: Colors
Connector: SC,FC,LC Cable diameter: 0.9mm/2.0mm/3.0mm
Insertion loss: IL<0.2db Fiber type: G652D/G657A1/G657A2 Etc.
Fiber Count: 12 Fiber Polish Type: APC UPC
High Light:

single mode fiber pigtails

,

Fan Out fiber pigtails

,

ST Ribbon fiber pigtails
Product Description
12 Colors ST Ribbon Fan Out Single Mode Fiber Pigtails

12 colors ST ribbon fan-out pigtails, multi fiber fan out kits factory installed for splice stray

Description:
CY COM provide various of fiber optic pigtails for your splicing application, includes 1fiber, 4/6/8/12 fiber pack with different connectors of SC, LC,FC, ST , with UPC or APC polish type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket. Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.

Features :

Connect with outside cables and trays inside racks

Small factor design minimizes storage space

Choice for 12 cores ,24 cores and Multi-cores

Comply with Telcordia GR-326-CORE , IEC Standard


Application:
Telecommunication
Computer networks
CATV networks Active device termination
Instrumentation


Parameters



Fiber count 12 Fiber Mode 9/125μm
Connector Type1 FC/APC Connector Type2 Unterminated
Fiber Mode SM Breakout length 0.5m
Wavelength 1310/1550nm Jacket Material PVC/LSZH
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥50dB Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C

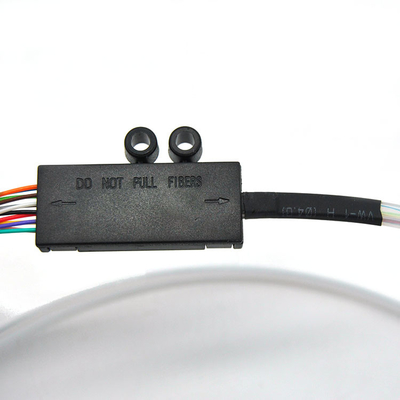

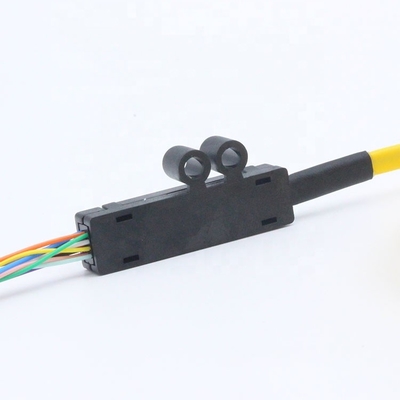

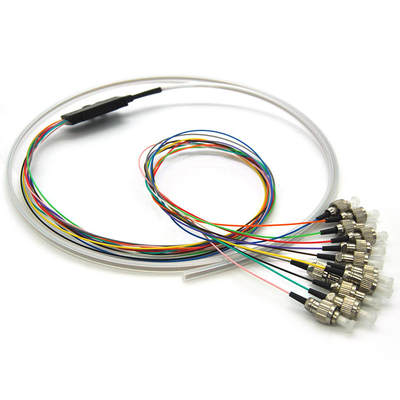

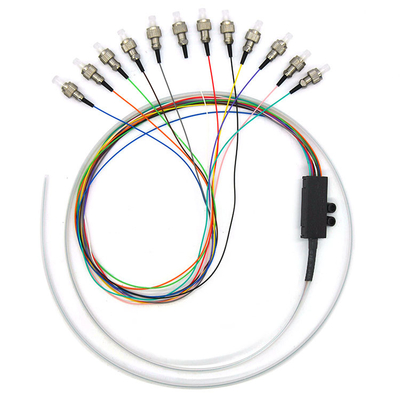

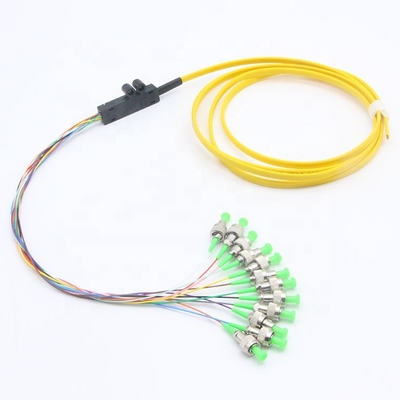

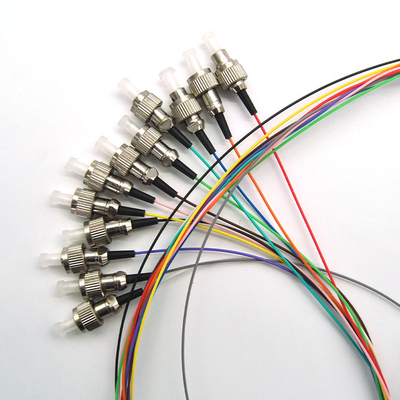

12 Colors ST Ribbon Fan Out Single Mode Fiber Pigtails 012 Colors ST Ribbon Fan Out Single Mode Fiber Pigtails 1

12 Colors ST Ribbon Fan Out Single Mode Fiber Pigtails 2

12 Colors ST Ribbon Fan Out Single Mode Fiber Pigtails 3
