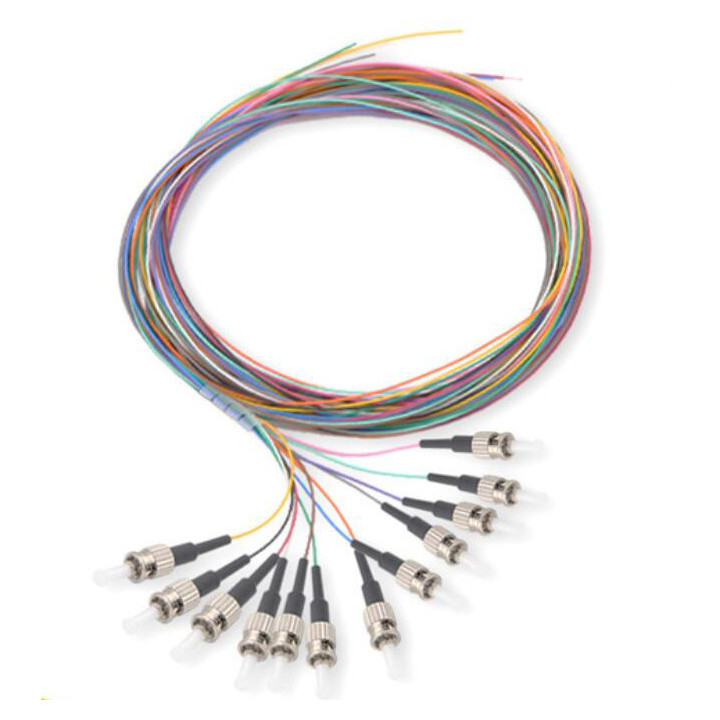

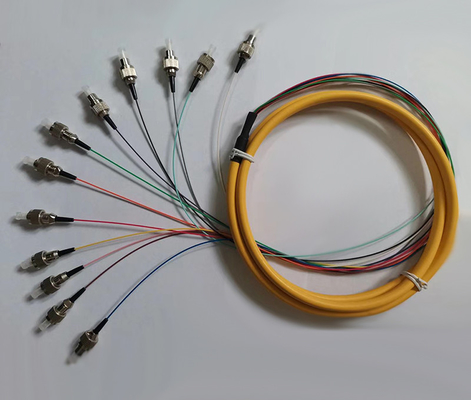

OM1 OM2 APC PC Connector 12 Bundle Fiber Optic Pigtail
| Connector: | SC,FC,LC,ST | Fiber Count:: | 4/6/8/12 Fibers |
| Insertion loss: | IL<0.2db | Length: | 1m Or Customized,62.5/125) OM1 OM2 OM3 OM4 |
| Certification: | RoHS,ISO9001 | Jacket: | PVC Or LSZH |
| High Light: | 12 Bundle Fiber Optic Pigtail,OM1 APC PC Pigtail,OM2 APC PC Pigtail |
||
Fiber optic pigtails are typically used to link the fiber optic cable with fiber optic equipment. The connector side of the pigtail is used to link the equipment, while the other side is fusion spliced together with the fiber cable. By splicing together, the fiber glasses, it can reach a minimum insertion loss.
Single-mode fiber uses to transmit over longer distances. It is a single glass fiber strand used to transmit a single ray of light. Single-mode fiber features only one transmission mode. Compared with multi-mode fiber, it can carry higher bandwidths; however, it needs to have a light source having a narrow spectral width.
-
Individually bagged with individual test certificates;
-
Can be labelled and packaged to your requirements;
-
Fire Performance - LSZH applications flame resistance IEC 60332-1;
-
Ferrule Material - Full zirconia;
-
Low insertion loss, Low back reflection loss;
-
Flexible and easy to strip fiber buffering;
-
Identifiable fiber buffer colors under all lighting conditions;
-
Reduces installation time;
-
Avoids incorrect patching by possible fiber flipping.
Parameters
| Parameter | LC,SC,ST,FC | ||
| SM | MM | ||
| UPC | APC | UPC | |
| Operating Wavelength(nm) | 1310/1550 | 850/1300 | |
| Insertion Loss(dB) | ≤0.20 | ≤0.20 | ≤0.20 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 |
| Repeatability Loss(dB) | ≤0.1 | ||
| Interchangeability Loss(dB) | ≤0.20 | ||
| Repeat Piug-pull Times | ≥1000 | ||
| Tensil Strength(N) | ≥100 | ||
| Durability Loss(dB) | ≤0.20 | ||
| Operating Temperature(℃) | -40℃~ +75℃ | ||
| Storage Temperature(℃) | -40℃~85℃ | ||
-
