Simplex Single mode G652D G657A Fiber Jumper Fiber Patch Cord e2000 1M/2M/3M...customize for Telecom Communication
| Model Name:: | E2k Fiber Patch Cord E2000 | Cable color: | Yellow Or Customized |
| length: | 1M/2M/3M...customize | Insertion loss:: | ≤0.3dB |
| Return loss:: | SM APC≥60dB | Application:: | Telecom Comunication |
| High Light: | Telecom Communication Fiber Jumper,G657A Fiber Patch Cord,Single mode Fiber Jumper |
||
e2000 Simplex Single mode G652D G657A e2k fiber patch cables Fiber Jumper fiber patch cord e2000
Our E2000 range of standard patch cords are suitable for telecom, datacom, data center and some critical applications. The patch cords provide flexible interconnection to active equipment, passive optical devices and cross-connects. The patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.The patch cords are terminated with optimized range physical contact (single mode & multimode) and angled physical contact (single mode) zirconia ferrule connectors which are manufactured with precision factory mounting and polishing techniques which helps assure high transmission quality.
Feature:
1. E2000 and E2000 APC optic connectors with metal shutter
2. Available in different fiber types including OS1/OS2 - G.652D or G657A1, G.657A2, OM1, OM2, OM3 or OM4
3. Low smoke zero halogen (LSZH) jacket color coded to identify the optical fiber type

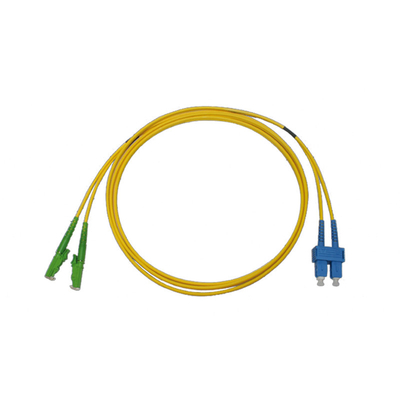

4. Available as hybrid patch cords with different connector types including FC, LC, SC or ST
5. Available in standard and custom lengths
6. REACH, RoHS & SvHC materials compliant.
Application:
1. Telecommunication networks
2. CATV
3. LAN and WAN
4. FTTX
5. Broadband network
6. Data Centre
| CHARACTERISTICS | UNITS | SIMPLEX | DUPLEX |
| Cable Material | LSZH | LSZH | |
| Strength Member | Aramid | Aramid | |
| Crush | N | 1000 | 1000 |
| Operating Temperature | °C | -20 to +60 | -20 to +60 |
| Secondary Buffer Diameter(2.0mm and 3.0mm) | µm | 900 ± 50 | 900 ± 50 |
-
