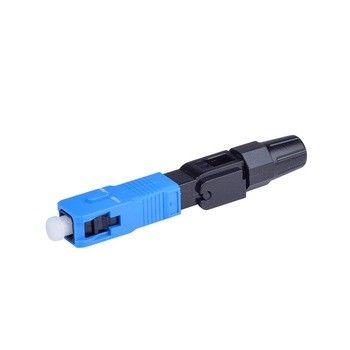

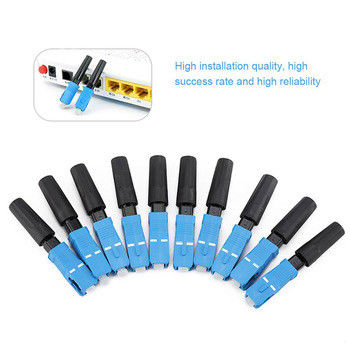

Fiber Optic Fast Connector SC APC UPC Quick Connector For FTTH Drop Cable Field Termination
| Model Number: | Fiber Optic Fast Connector | Type: | Fiber Adapter & Connectors |
| Use: | FTTH | Product name: | SC/UPC Fiber Optic Fast Connector |
| Insertion Loss: | ≤0.3dB | Suit cable diameter: | 0.9/2.0/3.0mm |
| Applicable: | -40℃~+85℃ | ||
| High Light: | Field Termination Fiber Optic Fast Connector,SC APC Fiber Optic Fast Connector,Drop Cable Fiber Optic Fast Connector |
||
Connector Adapter Field Assembly Connector Single Mode Fiber Optic SC APC UPC
Feature:
- Low insertion loss and return loss
- Free-floating ceramic ferrule
- UL-rated plastic housing and boot
- Boots in a variety of colors
- High precision alignment
Availability:

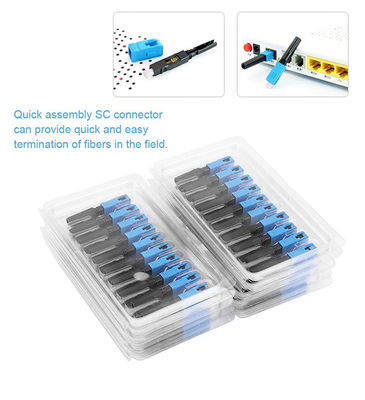

- The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
- Housing kits without ferrule are available.
- PC and APC are available
Mechanical Drawings:
Specifications:
| Item | Single mode | Multi mode |
| Insertion loss | PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB | ＜0.3dB |
| Return loss | PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB | ＞25dB |
| Insert-pull test | 1000(times) ＜0.2dB | |
| Operating temperature | -40℃~ +80℃ | |
| Ceramic ferrule spec | 125.5um concentricity deviations: ＜1um | 127um concentricity deviations: ＜3um |
| Suitable fiber | PC/APC(9/125um) | PC(50/125um, 62.5/125um) |
Application:
-
