Product Details:
Payment & Shipping Terms:
|

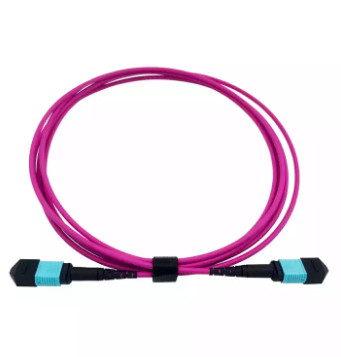

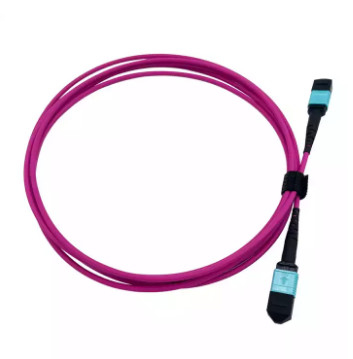

| Model No.: | 12 Fiber MPO-MPO | Connector Type: | MPO-MPO |
|---|---|---|---|
| Use: | Data Center | Insert Loss: | Standard ≤ 0.7db | Low ≤ 0.35db |
| Polarity: | Type B (Key Up - Key Up) | Outer Jacket Material: | LSZH OFNR OFNP |
| High Light: | MPO OM4 Patch Cord,12 Fiber OM4 Patch Cord,Optic Om4 Fiber Patch Cables |
||
|
Specification
|
Single Mode
|
Multi Mode
|
||
|
Parameter
|
PC
|
UPC
|
APC
|
UPC
|
|
Operating Wavelength
|
1310nm, 1550nm
|
850nm, 1300nm
|
||
|
Insertion Loss
|
≤0.3dB
|
≤0.2dB
|
≤0.3dB
|
≤0.2dB
|
|
Return Loss
|
≥40dB
|
≥50dB
|
≥60dB
|
≥30dB
|
|
Fiber Type
|
G652D,G655, G657A1, G657A2, G657B3
|
OM1/OM2/OM3/OM4/OM5
|
||
|
Fiber Brand
|
YOFC,Corninng
|
|||
|
Exchange
|
≤0.2dB
|
|||
|
Repeartability
|
≤0.2dB
|
|||
|
Durability
|
> 1000 times
|
|||
|
Connectors Type
|
SC, LC, FC, ST, E2000, MU, MTRJ, MPO, DIN, SMA, VF-45, LX.5
|
|||
|
Cable Type
|
Simplex, Duplex(figure 8)
|
|||
|
Sheath Material
|
PVC, LSZH, OFNR, OFNP
|
|||
|
Cable Diameter
|
φ3.0mm, φ2.0mm, φ0.9mm or Specify
|
|||
|
Length (M)
|
Customized
|
|||
|
Operating Temperature
|
-40℃~+60℃
|
|||
|
Storage Temperature
|
-45℃~+85℃
|
|||
|
Compliant Standards
|
CE,RoHS, REACH and IEC
|
|||
