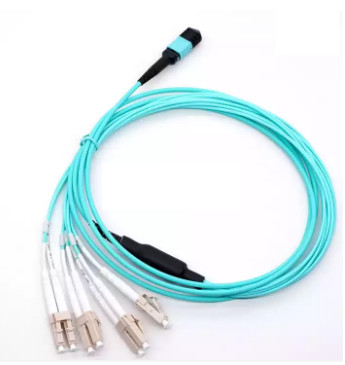

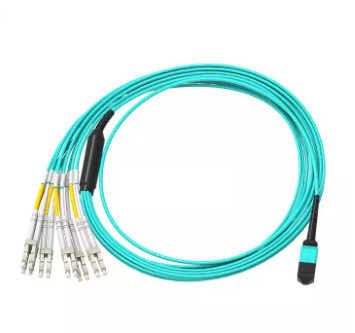

12 Cores Om3 MPO - LC UPC MM Fiber Optic Patch Cord Optical
| Model No.: | MPO LC | Cable Diameter: | 0.9mm |
| HS Code: | 8544700000 | Certificate: | RoHS And ISO9001 |
| Connector Type: | Sc/LC/FC/St/Mu/E2000 And So On | Fiber Type: | SM/Om1/Om2/Om3/Om4 For Option |
| High Light: | Om3 Optical Fibre Cables,12 Cores Om3 Fiber Optic Cable,MPO - LC Fiber Optic Patch Cord |
||
Fiber Jumper 12 Cores Om3 Optical Fibre Cables MPO - LC UPC MM Fiber Optic Patch Cord
Products advantages:
1. The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2. Good supply capacity(20K-30K pieces connectors each day)
3. Fast delivery time(5-7days)
4. Complied to ISO9001 quality system
5. 100% testing before shipment
6. 3D passed testing with report for option
7. All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA905 and so on)
Specification
Mode |
Single mode | Multimode | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Salt Spray | ≤0.1dB | ||
| Repeatability | ≤0.1dB (1000 times) | ||
| Vibration | ≤0.2dB (550Hz 1.5mm) | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
| Apex Offset | 0μm ~ 50μm | ||
| Radius of Curvature | 7mm ~ 25mm | ||
| Standards-Compliant | ROHS,IEC and GR-326 | ||
Fiber cable performance specifications |
|||
| Fiber type | Min.Bandwidth | Distance | attenuation |
| 62.5/125 | 850/1300nm 200/500 MHz/Km |
@100Mbps 2km @1Gig 220m | 850/1300nm 3.0/1.0dB/km |
| 50/125 | 850/1300nm 500/500 MHz/Km |
@100Mbps 2km @1Gig 500m | 850/1300nm 3.0/1.0dB/km |
| 50/125 10Gig Optimized |
850/1300nm 2000/500 MHz/Km |
@100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm 3.0/1.0dB/km |
| 9/125 | 1310/1550nm Approx 100 Terahertz |
Up to 100km Varies by transceiver | 1310/1550nm 0.4/0.3dB/km |
Fiber type |
Single mode: 1,9/125-G652D 2,9/125-G655 3,9/125-G657 |
| Multimode: 4,50/125-OM2 5,62.5/125-OM1 6,50/125-OM3 |
|
| Fiber | Corning,China Fiber,other |
| Connector1 | SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others |
| Polishing | PC,UPC,APC,MTRJ Male connector,MTRJ female connector |
| Connector2 | SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others |
| Polishing | PC,UPC,APC,MTRJ Male connector,MTRJ female connector |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,2.0mm,1.8mm 3.0mm |
| Cable jacket | PVC,LSZH,OFNR,OFNP |
| length(M) | 0.5m,1m,3M,5m,10m,20m,200m |
Applications
1. FTTH (Fiber To The Home)
2. Optical fiber data communication
3. Optical fiber access networks
4. Optical fiber communications system
5. Telecommunications
6. CATV, LAN, MAN, WAN, Test &Measurement
7. Military industry
8. Medical
-
