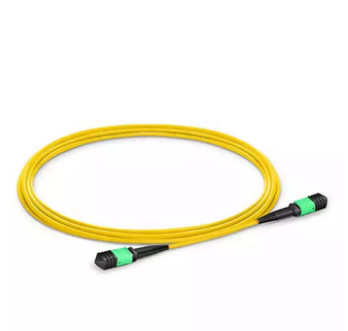

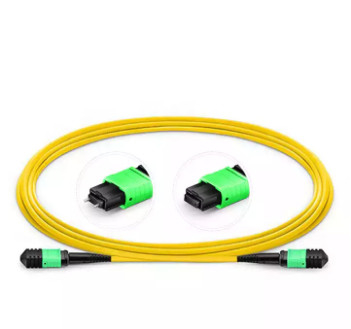

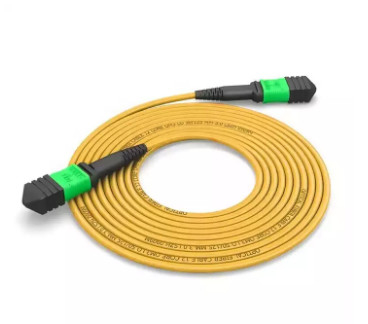

Mpo To Mpo 8 12 24 Fiber Optic Patch Cord Low Insertion

Basic Properties
Place of Origin: SHENZHEN CHINA
Brand Name: Senko / US CONEC / Furukawa Connector
Certification: ISO9001:2015
Model Number: MPO MTP UPC OM3 OM4 8F 12F 24F
Trading Properties
Minimum Order Quantity: 1 piece
Price: US $10 - 20/ Piece
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50K
Tags

fiber optic cassette

patch cord optical fiber

fiber optic patch cord
Specifications
Model No.: 12 Fiber MPO-MPO Connector Type: MPO-MPO
Use: Data Center Outer jacket material: LSZH OFNR OFNP
Polarity: Type B (Key Up - Key Up) Insert Loss: Standard ≤ 0.7db | Low ≤ 0.35db
High Light:

Mpo To Mpo Fiber Optic Jumper

,

LSZH Mtp Mpo Fiber Patch Cable

,

Low Insertion Mtp Mpo Patch Cord
Product Description
High quality MPO to MPO Fiber Optic Jumper Low insertion 8 12 24 Fiber Optic Patch Cord



MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration. Each cable has a Male or Female MTP/MPO connector on each end. With highly integrated design and manufacturing capability, Shenzhen IH Fiber Cable can provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords , IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MTP Patch Cords ,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel

Applications

1. High density architectures
2. Data communication network
3. Optical System Access network
4. Storage area networking fiber channel
5. LANS / WANS/ FTTX

Features

1. 100% pre-terminated and tested in factory to ensure transfer performance
2. Rapid configuration and networking, time-saving
3. Supports 40G and 100G network applications
4. Jacket material: LSZH, OFNR, OFNP available
5. Supports up to 12C, 24C, 48C, 72C,96C, 144C
Specification
Specification
Single Mode
Multi Mode
Parameter
PC
UPC
APC
UPC
Operating Wavelength
1310nm, 1550nm
850nm, 1300nm
Insertion Loss
≤0.3dB
≤0.2dB
≤0.3dB
≤0.2dB
Return Loss
≥40dB
≥50dB
≥60dB
≥30dB
Fiber Type
G652D,G655, G657A1, G657A2, G657B3
OM1/OM2/OM3/OM4/OM5
Fiber Brand
YOFC,Corninng
Exchange
≤0.2dB
Repeartability
≤0.2dB
Durability
> 1000 times
Connectors Type
SC, LC, FC, ST, E2000, MU, MTRJ, MPO, DIN, SMA, VF-45, LX.5
Cable Type
Simplex, Duplex(figure 8)
Sheath Material
PVC, LSZH, OFNR, OFNP
Cable Diameter
φ3.0mm, φ2.0mm, φ0.9mm or Specify
Length (M)
Customized
Operating Temperature
-40℃~+60℃
Storage Temperature
-45℃~+85℃
Compliant Standards
CE,RoHS, REACH and IEC
