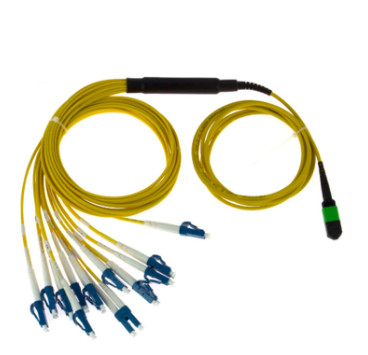

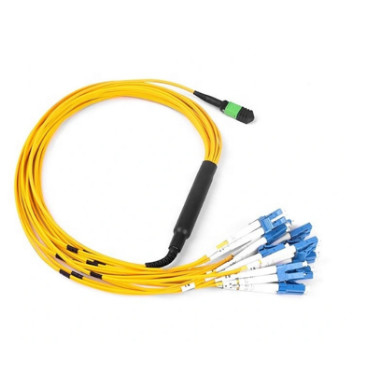

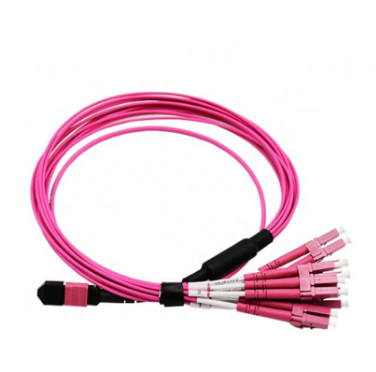

LSZH / PVC SM MPO To LC Fiber Optic Pigtail 12 Core
| Product Name: | MPO Fiber Optic Patch Cord | Polarity: | A/B/C |
| Cable Color: | Yellow / Aqua / Violet | Cable Materia: | LSZH / PVC |
| Total Length: | 0.5M / 1M /1.5M / Customized | Connector Type: | APC / UPC SM / MM Female /Male |
| High Light: | Fibre Optic Jumper 12 Core,MPO To LC Fiber Optic Pigtail,12 Core SM Fiber Optic Patch Cord |
||
Fibre Optic Jumper 12core SM Fiber Optic Patch Cord MPO To LC Fiber Optic Pigtail
Description
MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration.
MPO/MPT trunk cables using a compact and rugged microcable structure, according to different colors divided into SM, MM and 10G MM. The fiber ranges from 12 to 144, MTP polarity options are TIA way is Style A(up), Style B(down) and Style C(up/up). The cable length belongs to a custom product, please kindly email your requirements to us!
Features
· With 12-fiber and 24-fiber MPO/MTP connector standard
· Available in OS1/2, OM2, OM3 and OM4
· Available in FC,LC, SC, ST, MU, and MTP
· Interface polished type has PC, UPC and APC
· Available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers
· 100% factory tested
· Discrete connectors are heat-cured and use ceramic ferrules and sleeves
· Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
· Customized for length, staggering, connector type, breakout style, fiber count, and labeling fiber
Applications:
◆ Data Centre Infrastructure
◆ Storage Area Network-Fiber Channel
◆ Emerging 40 & 100Gps Protocols
Pre-terminated MPO/MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
MTP/MPO Cables
MTP/MPO Cable has the advantages of shorter installation times, tested and guaranteed quality and greater reliability. It has several different kinds of types.
Trunk Cables
Trunk cables serve asa permanent link connecting the MTP/MPO modules to each other. They are available with 12, 24, 48 and 72 fibers. Their ends are terminated with 12-fiber or 24-fiber MTP/MPO connectors according to customer's choice. These trunk cables like 12 fibers MPO trunk cable could help to create a simple,cost- effective 40G networking by installing a structured cabling system. MTP/MPO trunk cable requires greater care in planning but has a number of advantages, such as higher quality, minimal skew, shorter installation time,better protection, smaller volume of cable and lower total costs.
Specifcation:
-
AGood Durability,have a dedicated after-sales team.
-
JExperienced supplier,good service,it is valuable to have a long cooperation.
-
DNice appearance,good packing,excellent!
