Duplex Singlemode 2m 3m 1550nm Fiber Optic Patch Cords
| Product Name: | Fiber Patch Cord | Cable Color: | Red |
| Cable Type: | G652D, G657A1,OM3 | Connector: | SC/UPC |
| Cable Dimension: | 0.9mm, 2.0mm,3.0mm | Wavelength: | 1310nm Or 1550nm |
| High Light: | fiber optic patch cable,fiber patch cord |
||
Duplex Singlemode 2m 3m 1550nm Fiber Optic Patch Cords
Feature:
Price-Competitive
Low Insertion Loss & PDL
Factory-terminated and Tested
Fiber Options: G.652D /G.657A1/OM1/OM2/OM3 and PM Panda Fiber
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Feature Connector with Ceramic FerrulesApplications
Specifications
- Simplex, single fiber, one connector on each end of the cable
- Standard zip cord jacketing, OFNR
- Corning fiber and cladding, Singlemode (9/125)
- APC and/or UPC ends 100% inspected and tested for correct return loss and insertion loss levels
- 1m,2m,3m,5m.... in length
Technical Parameters
| Connector type | FC,SC,LC,ST,MU,E2000,D4,DIN | |||
| Fiber mode | SM | MM | ||
| End face | PC | UPC | APC | PC |
| IL(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| RL(dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Other model | MT-RJ,MPO | |||
| IL(dB) | ≤0.7 | / | ≤0.7 | ≤0.5 |
| RL(dB) | ≥30 | / | ≥50 | ≥25 |
(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.
(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,
2；IPQC inspects the production line to ensure that the production meets the quality requirements.
3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements
(3) Optical Test. Our products comply with IEC and ITU standards
(4) At least 30% spot test by Quality Assurance Department after the products finished.

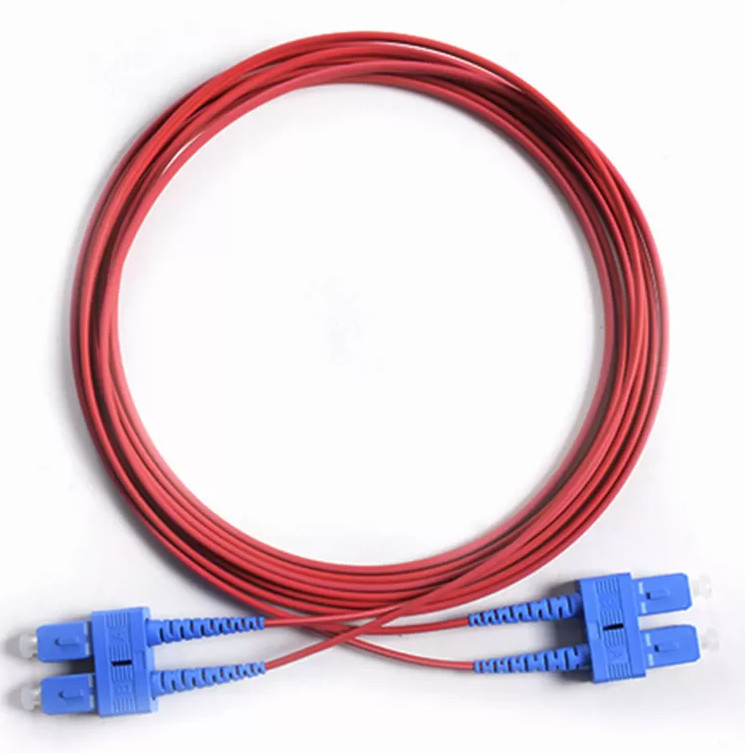

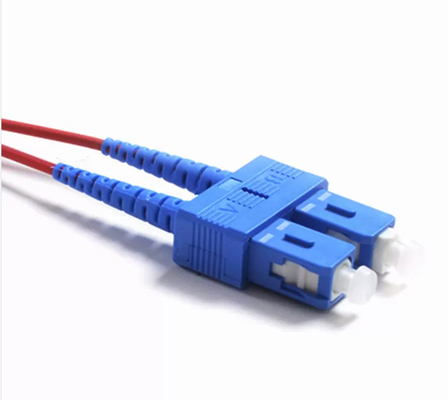

Product picture
Factory Picture:
Packing:
-
PThis products and company is very well,fast feedback!
-
AReliable manufacturer,reassuring,experienced!
-
INice packing,delivery fast,satisfied.
