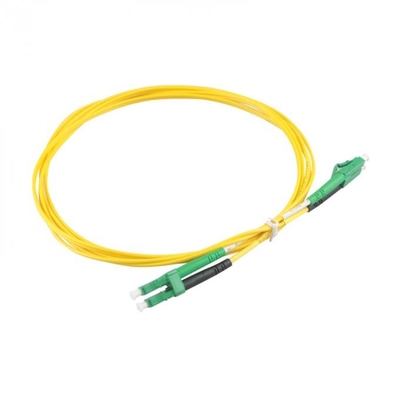

9/125 SM Duplex 3.0mm Fiber Patch Cords Lc Apc To Lc Apc

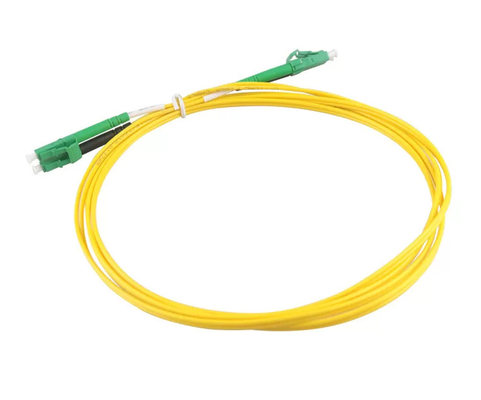

9/125 SM Duplex 3.0mm Fiber Patch Cords Lc Apc To Lc Apc

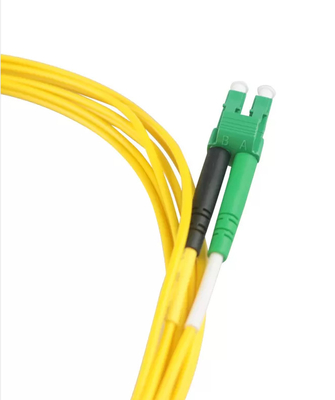

9/125 SM Duplex 3.0mm Fiber Patch Cords Lc Apc To Lc Apc
video play

Large Image :  9/125 SM Duplex 3.0mm Fiber Patch Cords Lc Apc To Lc Apc

Product Details:
Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: LC APC To LC APC
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Detailed Product Description
Product Name: Fiber Optic Patch Cord Cable Color: Yellow
Cable Type: G652D, G657A1 Connector: LC APC To LC APC
Cable Dimension: 0.9mm, 2.0mm,3.0mm Wavelength: 1310nm Or 1550nm
High Light:

3.0mm Fiber Patch Cords

,

3.0mm Fiber Optic Patch Cord

,

Duplex Fiber Patch Cords

9/125 SM Duplex Lc Apc To Lc Apc 3.0mm Fiber Patch Cords





Feature:



Price-Competitive
Low Insertion Loss & PDL
Factory-terminated and Tested
Fiber Options: G.652D /G.657A1/OM1/OM2/OM3 and PM Panda Fiber
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Feature Connector with Ceramic Ferrules



Specifications:

  • Simplex, single fiber, one connector on each end of the cable
  • Standard zip cord jacketing, OFNR
  • Corning fiber and cladding, Singlemode (9/125)
  • APC and/or UPC ends 100% inspected and tested for correct return loss and insertion loss levels
  • 1m,2m,3m,5m.... in length
fiber connector LC/APC-LC/APC Mating cycles >1000
length 3M Operating temperature -40℃-85℃
Insertion Loss ≤0.3dB Tensile strength ≥200N
mode singlemode Jacket PVC or LSZH
weight 30pair/KG cable diameter 3.0mm(oem2.0mm,0.9mm)





Technical Parameters



Connector type FC,SC,LC,ST,MU,E2000,D4,DIN
Fiber mode SM MM
End face PC UPC APC PC
IL(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.3
RL(dB) ≥45 ≥50 ≥60 ≥35
Other model MT-RJ,MPO
IL(dB) ≤0.7 / ≤0.7 ≤0.5
RL(dB) ≥30 / ≥50 ≥25
Application:

1. FTTH FTTB FTTX Network
2. CATV type FTTH, FTTB & FTTP systems.
3. Fiber optic patch cord was widely used in all kinds of optical network solutions , such as Security , WAN, LAN,Test Equipment.

Quality Guarantee:


(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.

(2) Quality Test.

1;Raw materials will be put into production line production only after passing IQC inspection,

2;IPQC inspects the production line to ensure that the production meets the quality requirements.

3;OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements

(3) Optical Test. Our products comply with IEC and ITU standards

(4) At least 30% spot test by Quality Assurance Department after the products finished.

Factory Picture:

9/125 SM Duplex 3.0mm Fiber Patch Cords Lc Apc To Lc Apc 0

Packing:

9/125 SM Duplex 3.0mm Fiber Patch Cords Lc Apc To Lc Apc 1
