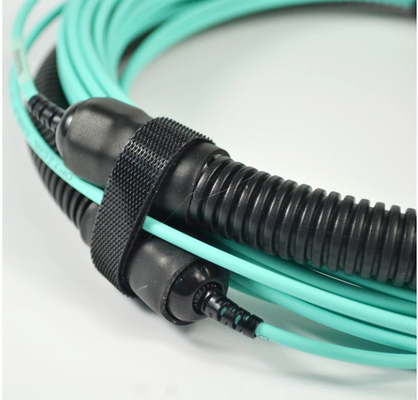

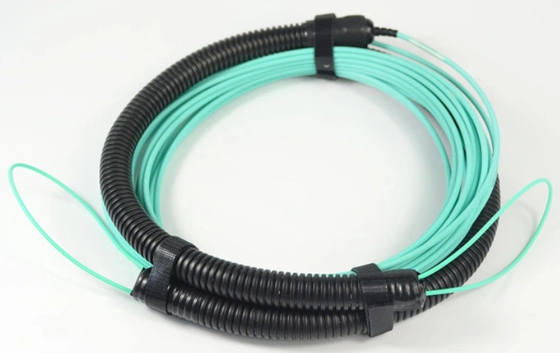

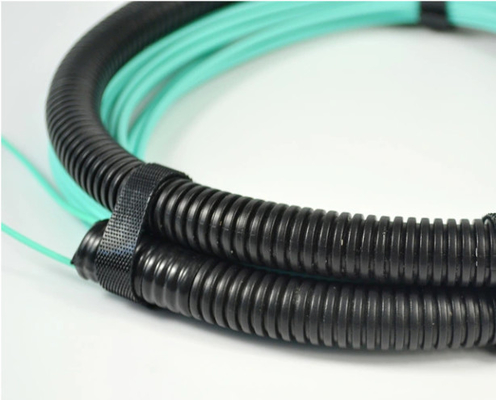

24 cores Optical Fiber Female MPO Patchcord With Pulling Eyes
| Model No.: | MPO Patchcord | Cable Diameter: | 3.0mm |
| Fiber Type: | Single Mode/Om1/Om2/Om3/Om4 For Option | Connector Type: | MPO/MTP |
| Test Wavelength: | 1310nm/1550nm | Origin: | Guangdong, China (Mainland) |
| High Light: | Optical Mpo Patch Cord,Female MPO Patchcord,24 Cores MPO Patchcord |
||
Product Description
We supply MTP and MPO fiber optic cables. These are available in female to female or a male to male and male to female configurations. The male version has MTP pins. These can be made with 12 fiber MTP connectors, 24 Fiber MTP connectors, 48 Fiber MTP connector variations. Many additional options and combinations are available. All multi fiber optic cables are customizable.
Quick Details:
Connector End face: MPO end face geometry requirements: EN50377-15-1
Polishing Quality:: Polished end-face quality: IEC61300-3-35
Our MPO patch cables are designed for data center solutions supporting the topologies such as 10Gigabit
Ethernet, Fiber Channel or Infiniband - as specified in the data center standards EN50173-5 and ISO/IEC 24764.
| Type/Performance | Singlemode(APC polish) | Multimode(PC / Flat Polish) | ||
| Standard | Elite Low Loss | Standard | Elite Low Loss | |
| Maximum Insertion Loss | <= 0.75dB | <= 0.35dB | <= 0.60dB | <= 0.35dB |
| Return Loss | >= 50dB | N/A | ||
| Operating Temperature | -40° C to 80 ° C | 40° C to 80 ° C | ||
| Test Wavelength | 1310nm | 850nm |
||
-
LMeet the standard of Telcordia GR-1435-CORE compliant.
-
DExperienced supplier,good service,it is valuable to have a long cooperation.
-
2Good quanlity,cooperate for long time,reliable!
