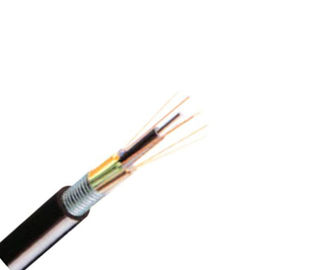

Loose Tube Outdoor Fiber Optical Cable GYFTS Steel Tape Layer With Black Sheath

Loose Tube Outdoor Fiber Optical Cable GYFTS Steel Tape Layer With Black Sheath

Features:

1. Accurate fiber excess length ensures good mechanical and tempetrature performance
2. The central strength memebr is made of hig Young's modulus glass fiber reinforces palstic rod(FRP)
3. The noe-metal central strength member avoids breakdown between central strength member and steel tape caused by lightning induction.
4. The loose tubes are filled with special filling compound for crucial protection of the optical fibers.
5. Complete water blocking construction ensures good water blocking and moisture-proof performance.
6. Strictly control of production process and raw materials
7. The longitudinal binding steel tape functions as protection as well as reinforcing the crush resistance and mechanical performance
8. The jacket possesses good ultra violet radiation resistant property.

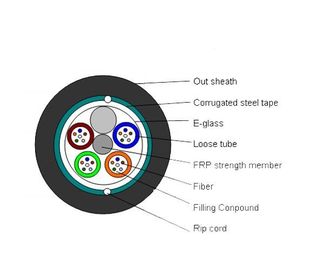

9. Loose tube cable with not-metal central strength member, and polyethylene coated steel armour
10. Loos tubes(or some fillers) stranded around the non-metal central strength member
11. All the interstices of cable core are filled with water blocking compound

Application:

    1. Long-distance communication, local trunk line, CATV & computer networks system

    2. Laying modes: Aerial

Specification:

Order Information:

1 Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours

2 Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)

3 Fiber count:  2-144

4 Cable length: 2000M/Drum( customized, MOQ=2000M)

5 Cable Jacket: Outer sheath Black
