PVC/LSZH/PE/HDPE GJFJV 37 Indoor 900um Fiber Optical Cable High Strength With Tight Buffer
| Model Number: | GJFJV 37 | Outsheath:: | PVC/LSZH/PE/HDPE |
| Fiber Type:: | G652D ,G657A,OM1,OM2,OM3,OM4 | Fiber Count:: | 2-48 Cores |
| High Light: | fiber patch cables,fiber optic wire |
||
Indoor 900um Fiber Optical Cable High Strength With Tight Buffer
Features:

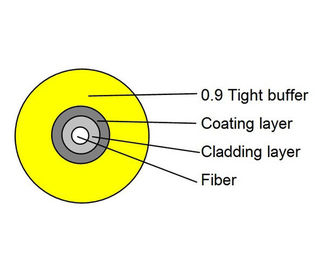

- Buffer was covered by PVC, easied to strip. The out-diameter is 0.9mm
- Each fiber with independent aramid yarn as strength member and tight buffer, high tensile strength and fatigue strength.
- Used as patch cords for various optical devices and quipment which require high strength
Application:
- Components for various indoor cables.
- Suitable for patch cords and pigtails.
- Suitable for communication equipment served
Specification:
| Fiber Count | Outer Dameter | Nominal weight | Max.tensile strength(N) | Min.Bending Radius(mm) | Max.Crush Resistance(N/100mm) | Temperature | |||
| (Core) | (MM) | (KG) | Short-term | Long-term | Dynamic | Static | Short-term | Long-term | °C |
| 1 | 0.9 | 1 | 16 | 8 | 20D | 10D | 100 | 80 | -20~60 |
Order Information:
1 Cable type:SM or MM( Sinlge-mode:white; Multi-mode:orange;options available for other colours
2 Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
3 Outer Diamater of cable: 0.9mm
4 Cable length: 2000M/Drum( customized, MOQ=2000M)
5 Cable Jacket: PVC,LSZH,OFNR,OFNP,PP,Hytrel
-
