MTRJ SX Simplex Fiber Optics Connector For SC And LC
| Product Name: | Fiber Optics Connector | Insertion Loss: | Single Mode L≤0.20dB & Multimode ≤0.25dB |
| Operating Temperature:: | -40 To + 80 | Single mode: | 125.0+1/-0μm |
| Multi mode: | 125μm | Return Loss: | PC ≥50 DB, UPC ≥55 DB & APC ≥65 DB |
| High Light: | fiber optic fc connector,fiber optics cable connectors |
||
MTRJ SX Simplex Fiber Optics Connector For SC And LC

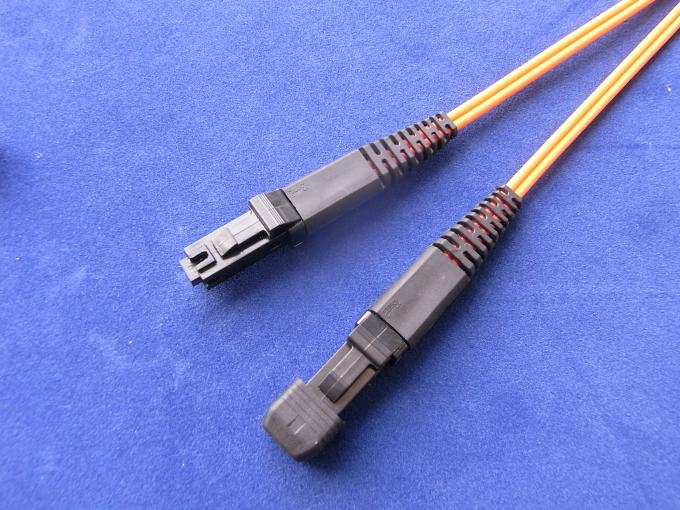

The MTRJ connector has an improved version of RJ-45 type plug. This latching mechanism ensure easy to use. MTRJ adapter with approximately same space as a simplex SC adapter
Specifications:
1.Small form connector
2.High quality thermostatic ferrule
3.Side pulling proof
4.Compact size
Availability:

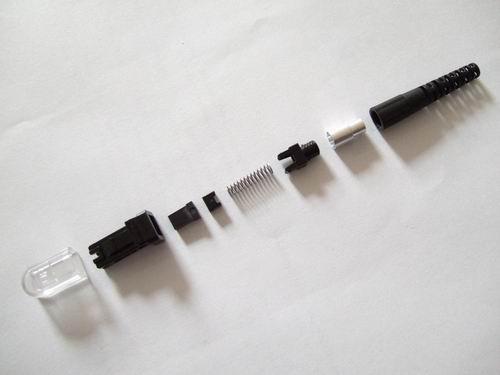

- -The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
- -Clips are available for SC and LC duplex connectors
- Housing kits without ferrule are available.
- -PC and APC are available
Specifications:
- Insertion Loss: Single mode l≤0.20dB & Multimode ≤0.25dB
- Return Loss: PC ≥50 dB, UPC ≥55 dB & APC ≥65 dB
- Durability <0.20 dB typical change, 1000 mating
- Operating Temperature: -40 to + 80
- Ferrule Hole Sizes:
- Single mode: 125.0+1/-0μm, Concentricity: ≤1.0μm, 125.5+1/-0μm, Concentricity: ≤1.0μm, 126.0+1/-0μm, Concentricity: ≤1.0μm
- Multi mode: 125μm, Concentricity: 1≤3μm or 127μm, Concentricity: 1≤3μm or 128μm, Concentricity: 1≤3μm
-
