| Product Name: | Fiber Optic Patch Cord | Ferrule End-face: | PC, UPC, APC |
|---|---|---|---|
| Core: | Simplex, Duplex | Cable Diameter: | Ф3.0mm, Ф2.0mm, Ф0.9mm |
| Cable Length: | 1, 2, 3 Meter Or Customized | Cable Type: | PVC, LSZH, OM3, OFNR, OFNP |
| High Light: | fiber patch cord,sc fiber patch cord |
||

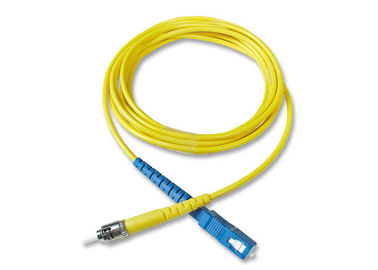

ST-SC SM DX Fiber Optic Patch Cord Telecom Class , Polished A
A patch cord is a fiber optic cable used to attach one device to another for signal routing.
Specifications:
1.Pluggable structure
2.easy to operate
3.in line with telcordia gr-326-core standard
4.Any diameter of fiber
Features:
Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability
Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Mechanical Drawings:
Specification:
|
Parameter |
Unit |
FC, SC, LC |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
|
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
|
Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
|
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Operating temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
|
Storage temperature |
°C |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
|
Cable diameter |
mm |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
||||||||
Ordering Information:
ST/UPC–ST/UPC-SM- DX-Φ3.0–2M
①②③④⑤⑥⑦
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC ( ST/APC is not available)
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤Cable Diameter: 3.0mm, 2.0mm, 0.9mm
⑥Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH, OM3, OFNR, OFNP
