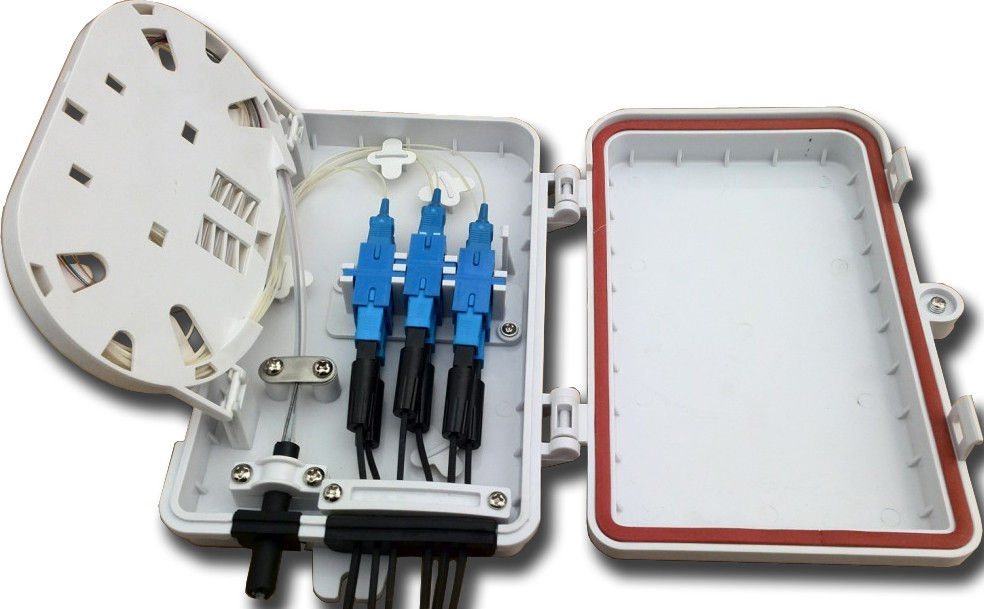

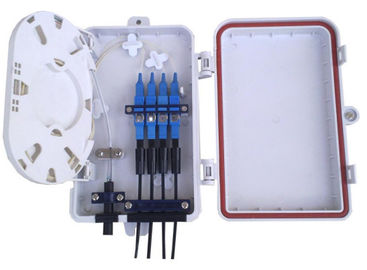

FTTH Fiber Distribution Box , Custom 6 Port Terminal Box
| High Light: | ftth splitter box,ftth fiber optic terminal box |
||
FTTH Fiber Distribution Box , Custom 6 Port Terminal Box
Features:
1.1 This box could be used for wall-mounted applications;
1.2 Suit for Outdoor & Indoor.
1.3 Waterproof, Anti-UV, Ultra violet resistant and rainfall resistant.
1.4 Light weight, small cubage, small installation size, realiable sealing.
1.5 Could be connected FTTH Drop cables inside.
1.6 The base and cover of the box adopts “self-clip” &”screw-clip” two times lock method,
which is better to use in outdoor for high sealing and waterproof.
Application
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
Main Technical Indexes
2.1 Environmental Temperature:－40℃～60℃;
2.2 Max capacity: 4 fibers;
2.3 Application for outdoor, IP65 grade
2.4 Material: High impact plastic.
Dimension:
|
Model |
Capacity |
Size(mm) |
Weight (kg) |
|
CY/FB-106C |
6 ports |
210(W)X140(H)x40(D) |
0.45 |
-
