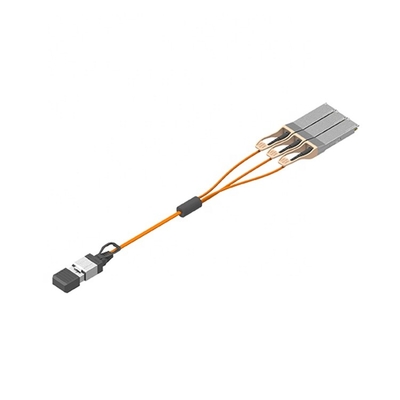

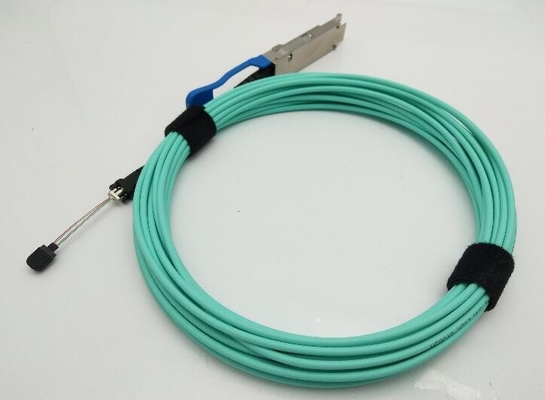

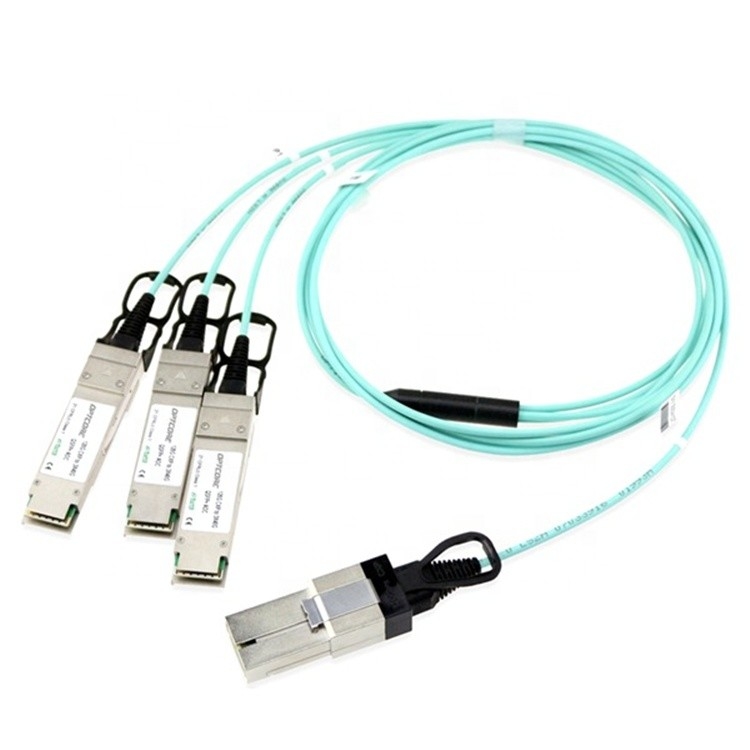

120G AOC Active Optical Cable
| Model Number: | 120G CXP To 3 X 40G QSFP | Connector Type: | CXP To 3 QSFP+ |
| Data rate: | 120G | Temperature:: | 0 To 70°C (32 To 158°F) |
| Form Factor: | QSFP+ | Type: | Fiber Optic Transceivers |
| High Light: | 120G CXP to 3 x 40G QSFP,120G AOC Active Optical Cable,120G Active Optical Cable |
||
Customized 120G CXP to 3 x 40G QSFP+ Breakout Active Optical Cable
| art Number | 120G CXP 3 x 40G QSFP+ AOC | Vendor Name | CY COM |
| Connector Type | CXP to 3 QSFP+ | Max Data Rate | 120Gbps |
| Minimum Bend Radius | 7.5mm | Cable Length | Customized |
| Jacket Material | OFNP | Temperature | 0 to 70°C (32 to 158°F) |
Features:
- Full Duplex 4 Channel 850nm Parallel Active Optical Cable
- Transmission data rate up to 10.3Gbit/s per channel
- Reliable VCSEL and PIN photonic devices
- Hot pluggable electrical interface
- Differential AC-coupled high speed data interface
- Available lengths (in meters): 1, 2, 3... 50...
- Commercial temperature range: 0 to 70°C
- Single 3.3V power supply
- Low power consumption: less than 1.5 W per end
- I2C standard management interface
- Excellent high speed signal integrity
- Complies with QSFP+ MSA high-density form factor
- Compliant to industrial standard SFF-8436 QSFP+ active optical modules
- RoHS-6 Compliant
- InfiniBand QDR (4 x 10G)
- 40G Ethernet
- Fibre Channel
- PCI-Express, SAS/SATA, Fibre Channel compatible interconnect
- Proprietary high speed, high density data transmission
- Switch and router high speed backplane interconnect
- High performance computing, server and data storage
-
