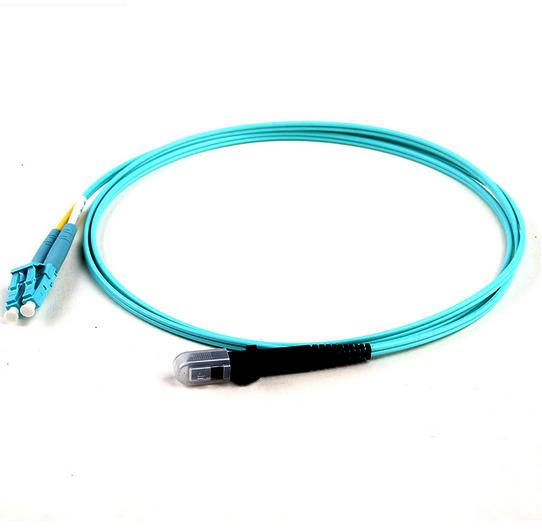

Blue Fiber Optic Patch Cord MTRJ To LC/UPC OM3 50/125 Duplex 2.0mm 5Mtrs OFNR

China Blue Fiber Optic Patch Cord MTRJ To LC/UPC OM3 50/125 Duplex 2.0mm 5Mtrs OFNR supplier

Large Image :  Blue Fiber Optic Patch Cord MTRJ To LC/UPC OM3 50/125 Duplex 2.0mm 5Mtrs OFNR

Product Details:

Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: MTRJ-LC OM3 DX Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: USD3.1-3.6/PCS
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Contact Now
Detailed Product Description
Cable Jacket: OFNR Color: Aqua
Length: 5 Mtrs Fiber: YOFC


Chinese manufacture of fiber optic patch cord,MTRJ to LC/UPC OM3 50/125 Duplex 2.0mm 5Mtrs OFNR

Applications :

♦Local Area Network
Wide Area Network
CATV,LAN,MAN WAN Network
FTTX System
Test Instruments

Features :

♦Low insertion loss, high return loss
♦Small, light, high dense connection
♦Standard exact plastic material
♦High credibility and stability
Good in repeatability and exchangeability


Specifications :

Parameter Unit FC, SC, LC/ Armoured fiber patch cord ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable diameter mm Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 Φ3.0, Φ2.0, Φ0.9 φ3.0, φ2.0, φ0.9


Order information:

  1. Type: SX/DX optional
  2. Ferrule end face: APC/UPC/PC
  3. Diameter: 0.9, 2.0, 3.0mm
  4. Length:1m, 2m, 3m to 120m
  5. Fiber: SM/OM1/OM2/OM3/OM4
  6. Material of jacket: PVC/LSZH/OFNR



Blue Fiber Optic Patch Cord MTRJ To LC/UPC OM3 50/125 Duplex 2.0mm 5Mtrs OFNR
