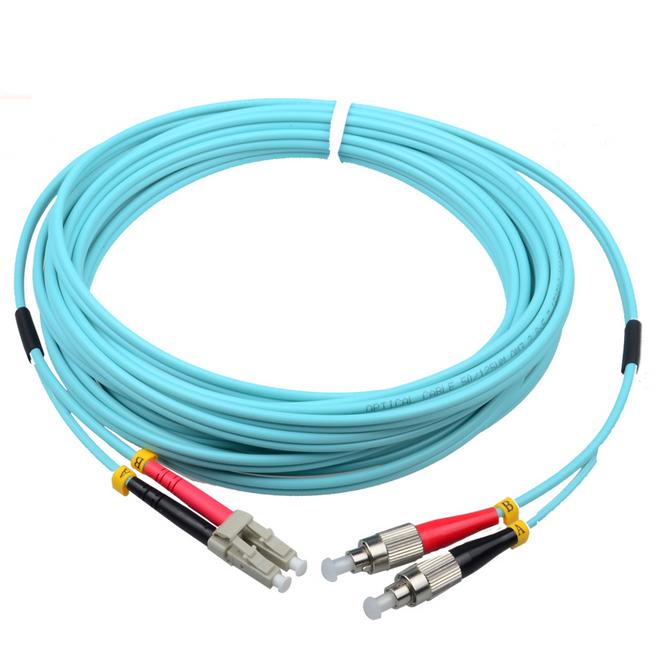

OM3 aqua duplex optical jumper FC/UPC-LC/UPC corning fiber LSZH cable jacket

China OM3 aqua duplex optical jumper FC/UPC-LC/UPC corning fiber LSZH cable jacket supplier
OM3 aqua duplex optical jumper FC/UPC-LC/UPC corning fiber LSZH cable jacket supplier OM3 aqua duplex optical jumper FC/UPC-LC/UPC corning fiber LSZH cable jacket supplier

Large Image :  OM3 aqua duplex optical jumper FC/UPC-LC/UPC corning fiber LSZH cable jacket

Product Details:

Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: FC-LC OM3 DX Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: USD3.0-4.5/PCS
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Contact Now
Detailed Product Description
Structure: Duplex Cable Jacket: LSZH
Color: Aqua Length: Can Be Customized


OM3 aqua duplex optical jumper,FC/UPC-LC/UPC, corning fiber,LSZH cable jacket

►Features:

  1. Low insertion loss, high return loss
  2. Small, light, high dense connection
  3. Standard exact plastic material
  4. High credibility and stability
  5. Good in repeatability and exchangeability

Application:


  1. Gigabit Ethernet
  2. Active device termination
  3. Telecommunication networks
  4. Video
  5. Multimedia
  6. Premise installations
  7. Local area networks
  8. FTTH and FTTX applications
  9. CATV


► Material of patch cord:

  1. Dust caps: LDPE, transparent (RoHS)
  2. Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
  3. Inner frame: PBT, white (RoHS)
  4. Ferrule: Zirconium oxide ceramic material, white (RoHS)
  5. Ferrule’s handle: copper (C3602), nickelage (RoHS)
  6. Mechanical spring: stainless steel (RoHS)
  7. Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
  8. Snap ring: aluminium alloy 6063 (RoHS)
  9. Ring: copper alloy (HPD62), nickelage (RoHS)
  10. Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
  11. Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNR and more


►Specification:


ItemUnitFC,SC,LCST,MUMT-RJ, MPOE2000
SMMMSMMMSMMMSM
PCUPCAPCPCUPCPCPCPCUPCPCPCUPC
Insertion loss(typical)dB≤0.3≤0.2≤0.3≤0.2≤0.3≤0.2≤0.2≤0.3≤0.2≤0.2≤0.3≤0.3
Return lossdB≥45≥50≥60≥30≥45≥50≥30≥45≥50≥35≥55≥75
Operating wavelengthnm1310,15101310,15101310,15101310,1510
ExchengeabilitydB≤0.2≤0.2≤0.2≤0.2
VibrationdB≤0.2≤0.2≤0.2≤0.2
Operating temperature°C-40~75-40~75-40~75-40~75
Storage temperature°C-45~85-45~85-45~85-45~85
Cable Diametermmφ3.0,φ2.0,φ0.9φ3.0,φ2.0,φ0.9φ3.0,φ2.0,φ0.9φ3.0,φ2.0,φ0.9




►Order information:

  1. Type: SX/DX optional
  2. Ferrule end face: APC/UPC/PC
  3. Diameter: 0.9, 2.0, 3.0mm
  4. Length:1m, 2m, 3m to 120m
  5. Fiber: SM/OM1/OM2/OM3/OM4
  6. Material of jacket: PVC/LSZH/OFNR
