CATV TFS 392 Three Hole Optical Fiber Stripping Pliers
| Product Name: | Testers &Tools | Model Number: | TFS-392 |
| Certification: | CE RoHS FCC | Application: | FTTH FTTB FTTX Network |
| Warranty: | 1 Year | No. of Fiber: | 1 |
| High Light: | Three Hole Optical Fiber Stripping Pliers,TFS 392 Fiber Stripping Pliers,TFS 392 Three Hole Optical Stripping Pliers |
||
CATV TFS 392 Three Hole Optical Fiber Stripping Pliers
three-hole optical fiber stripping pliers High Precision Tri-Hole TFS-392 for 250um/900um/3mm

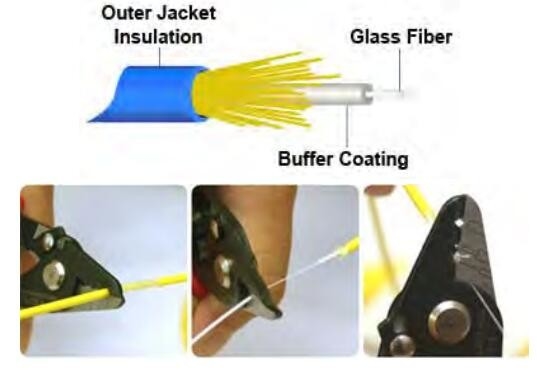

Three hole fiber optic stripper model performas all common
fiber stripping functions,this fiber optic stripper strips the 1.6-3
mm fiber jacket down to the 600-900 micron buffer coating ,the
second hole strips the 600-900 micron buffer coating down to the
250 micron coating and the third hole is used to strip the 250
micon cable down to the glass fiber without nicks or scratches
TFS-392 Tri-Hole Fiber Optic Stripper 250um/900um/3mm
TFS-392 fiber optic 3-way stripper is the ideal tool for stripping 125 micron glass fibers with 250 micron buffer coating without scratching or nicking the glass fiber.
- New three-hole model performs all common fiber stripping functions in one compact tool....
- Standard 250 to 125 micron stripping
- Remove 900 tight buffer to 250 micron buffer coating
- Hole for removal of 2 to 3 mm fiber jackets
- Length:136.5mm, Weight: 71g
Applications :
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
PART# DESCRIPTION
TFS-392 Tri-Hole Fiber Stripper w/yellow handle
TFS-392G Tri-Hole Fiber Stripper w/green handle
