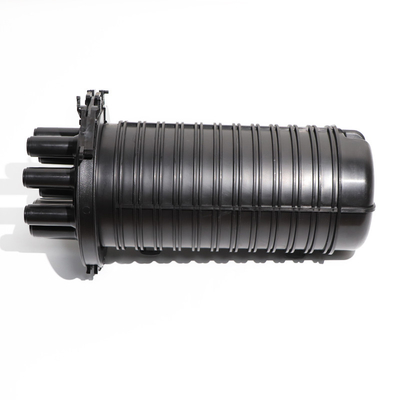

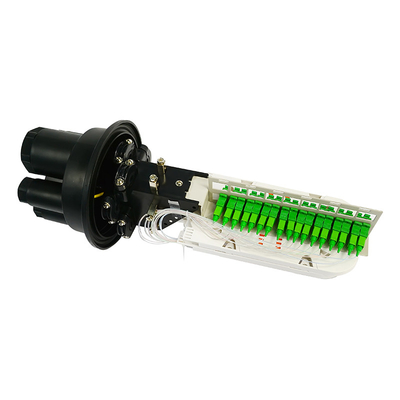

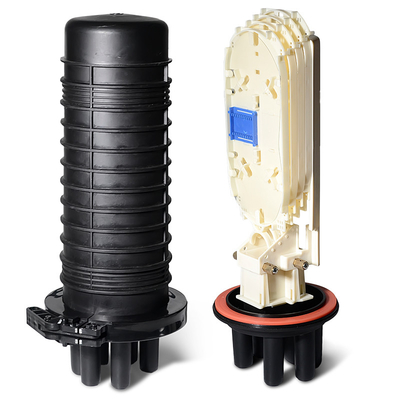

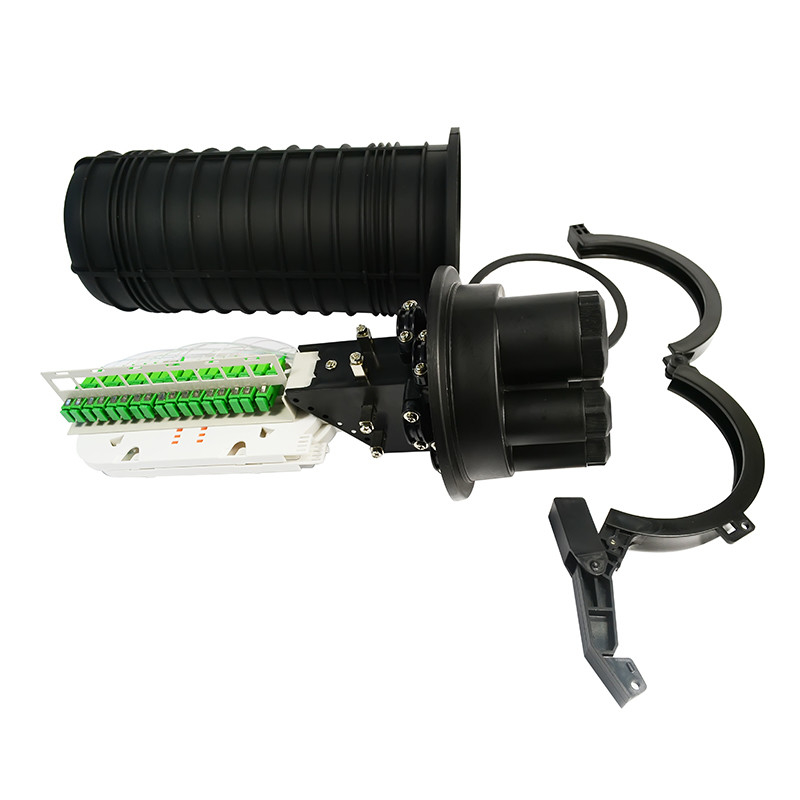

DomeFiber Optic Enclosure with PLC splitter

Basic Properties
Place of Origin: Shenzhen ,China
Brand Name: CY COM
Certification: ISO9001:2015,SGS,ROSH
Model Number: FOSC
Trading Properties
Minimum Order Quantity: 20pcs
Payment Terms: Western Union, T/T
Supply Ability: 500K/ Month
Tags

optical communication devices

fiber optic equipments

fiber optic splice closure
Specifications
Type: Dome/horizontal, Fiber Optic Splice Closure Splitter: 2:32,2:16
Color: Black Application: FTTH,Aerial
Water proof grade: IP67 Splice tray material: ABS
Max capacity: 12core -288 Core Material: PP/PC/ABS/ABS+PP
High Light:

12core PLC Fiber Optic Enclosure

,

12core PLC Fiber Optical Enclosure

,

12core Dome Fiber Optic Enclosure
Product Description

Fiber Optic Enclosure Network Equipment Fiber Optic Dome splice Closure with PLC Splitter



DESCRIPTION

Fiber optic closures are used throughout the network, including the fiber trunk, feeder, distribution, and last mile segments. CY COM's Fiber Optic Closures combine proven fiber management hardware with a highly reliable sealing system ,with excellent performance in reliability, installation and flexibility.



APPLICATION

Suitable for ribbon and non-ribbon fibers Aerial, duct, direct burial, and well Trunk lines Access networks FTTX, access networks
and broadband


FEATURES

Easily accessible for maintenance, changes, and expansion Protected against water ingress and harsh conditions Suitable for a variety of applications and environments including aerial, pedestal, buried, or underground Compatible with existing cable types

Sealing Performance

Pressurized up to 100Kpa±5Kpa into the sealed FOSC,then put the FOSC into the water 15minutes.There are no air bubbles.Or there is no change of air pressure within 24 hours.

Re-entry performance

Re-entry the FOSC 3 times as normal working condition,and pressurized up to 100Kpa±5Kpa into the sealed FOSC,then put the FOSC into the water 15minutes.There are no air bubbles.Or there is no change of air pressure within 24 hours.

Sealing Performance

Pressurized up to 100Kpa±5Kpa into the sealed FOSC,then put the FOSC into the water 15minutes.There are no air bubbles.Or there is no change of air pressure within 24 hours.

Re-entry performance

Re-entry the FOSC 3 times as normal working condition,and pressurized up to 100Kpa±5Kpa into the sealed FOSC,then put the FOSC into the water 15minutes.There are no air bubbles.Or there is no change of air pressure within 24 hours.

Mechanical Character

1. Tensile Test: The axial tensile strength should be not less than 800N,and there is not any crack.

2. Squeezing test: The FOSC can bear 2000N/m2 ,the lasting time is 1 minute.There is not any crack.

3. Impact test The FOSC can bear 16N.M impact 3 times,there is not any crack.

4. Bending test: The link part of cables and FOSC can bear 150N bending strength.The bending angle is ±450 ,repeat 10 times,there is not any crack.

5. Torsion Test: The FOSC can bear 50N.m torsion.The torsion angle is ±90°,repear 10 times,there is not any crack.

DomeFiber Optic Enclosure with PLC splitter 0DomeFiber Optic Enclosure with PLC splitter 1
