Product Details:
Payment & Shipping Terms:
|
| Material: | ABS/PBT | FTTH Socket Connector: | SC FC ST Simplex / LC Duplex |
|---|---|---|---|
| Capacity: | 4,8,12,16,32,48 | Protection Grade: | IP65 |
| Color: | White / Gray | Packing: | 1 Pieces/carton |
| Application: | FTTH | No. Of Fiber: | 16 |
| Highlight: | LC Duplex Optical Distribution Box,SC FC ST Simplex Optical Distribution Box,SC FC ST Simplex FTTH Box |
||

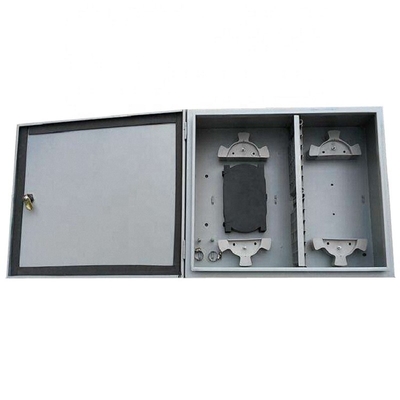

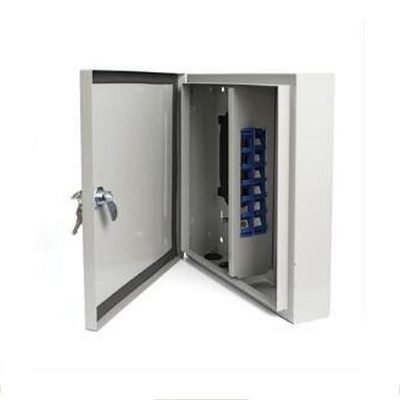

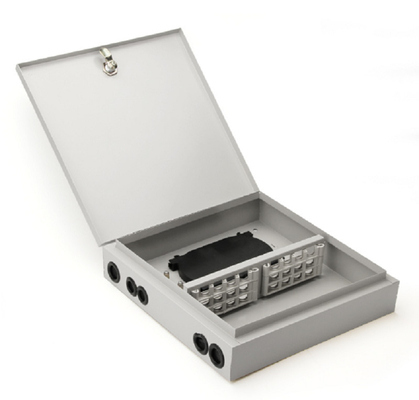

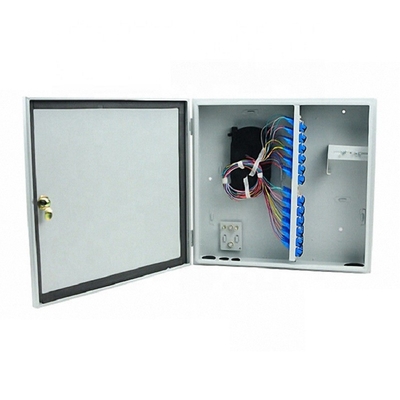

SC FC ST Simplex FTTH LC Duplex Optical Distribution Box
FTTH Outdoor Wall Mounted Fiber Termination Box Optical Distribution Box SC LC patch panel
Description:
fiber distribution NAP box is able to hold up to 16subscribers and 24splicing fiber. It is used as a splicing closure and a termination box for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Note: | ||
| The letter X stand for | The Letter Y Stand for | The Letter Z Stand for |
| L: LGX Splitter Type | 8: 1piece 1x8 splitter | G: Grey color |
| A: Adapter Plate Type. | 16: 1piece 1x16 splitter |
B: Black color
|
l Water-proof design with IP-65 Protection Level.
l Integrated with flap-up splice cassette and adaptor holder
l All stainless metal plate and anti-rusting bolts, nuts
l Fiber bend radius control more than 40mm
l Suitable for the fusion splicer or mechanical splice
l 2Pcs of 1*8 Splitter can be installed as an option
l Mechanical sealing structure and mid-span cable entry.
l 16 ports cable entrance for drop cable
l 16 adapters for drop cable patching
Configuration:
| Material | Size | Max Capacity |
Nos of Adaptor |
Wight | Color | |
| ABS/PC | A*B*C(MM)240*208*117 |
Splice 16 Fibers (1trays, 16fiber/tray) |
2pc of 1*8 PLC Splitter | 16pc of SC | 1.2kg | Grey/black |
Applications:
l Wall mounting and pole mounting installation
l FTTH pre-installation and filed installation
l 2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable

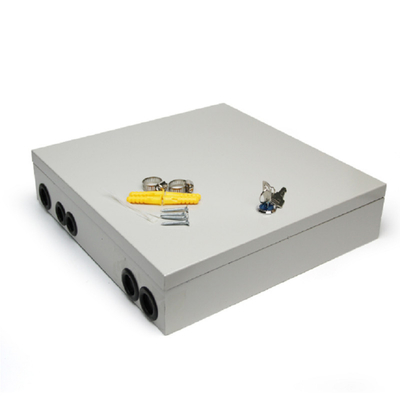

Splice cassette and cable management tool,
Installation nuts and bolts, protection sleeves hose clamp.
Cable tube, wrench, cover, holder, rubber seal for cable entrance
Packing:
| Model | Net Weight | Outer Carton Size | Outer Carton G.W | PCS/CTN |
| 1.00kg/pcs | 700*550*240mm | 12.0kg |
10pcs |
