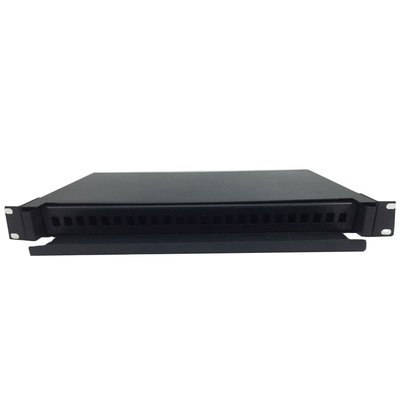

1U Fiber Optic Odf 1X2 Splitter Rack Mount Patch Panels
| Structure Type: | Standard 19'' | Apply port: | SC LC FC / UPC/APC CONNECTORS |
| Option channel:: | 4, 8 , 16, 18 Channels | Hight: | 1U |
| Material: | Metal Aluminum | Outer carto weight: | 5pcs / Carton (1U) |
| High Light: | 1X2 Splitter Rack Mount Patch Panels,1X2 Splitter Patch Panels,1U Odf Patch Panels |
||
1U Fiber Optic Odf 1X2 Splitter Rack Mount Patch Panels

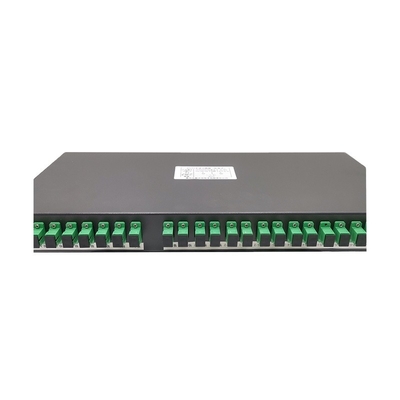

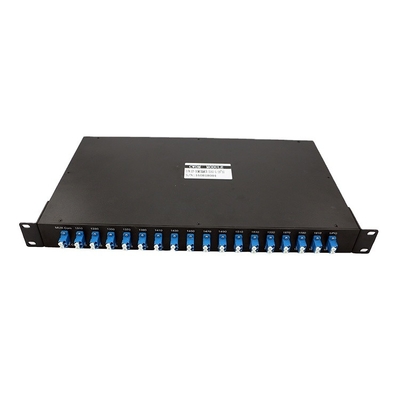

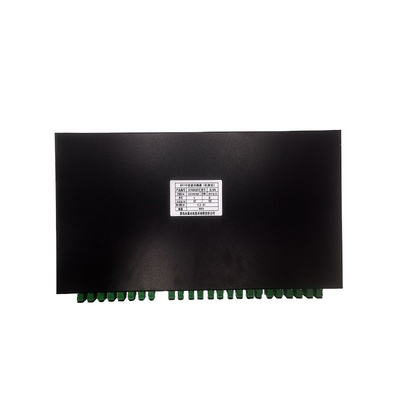

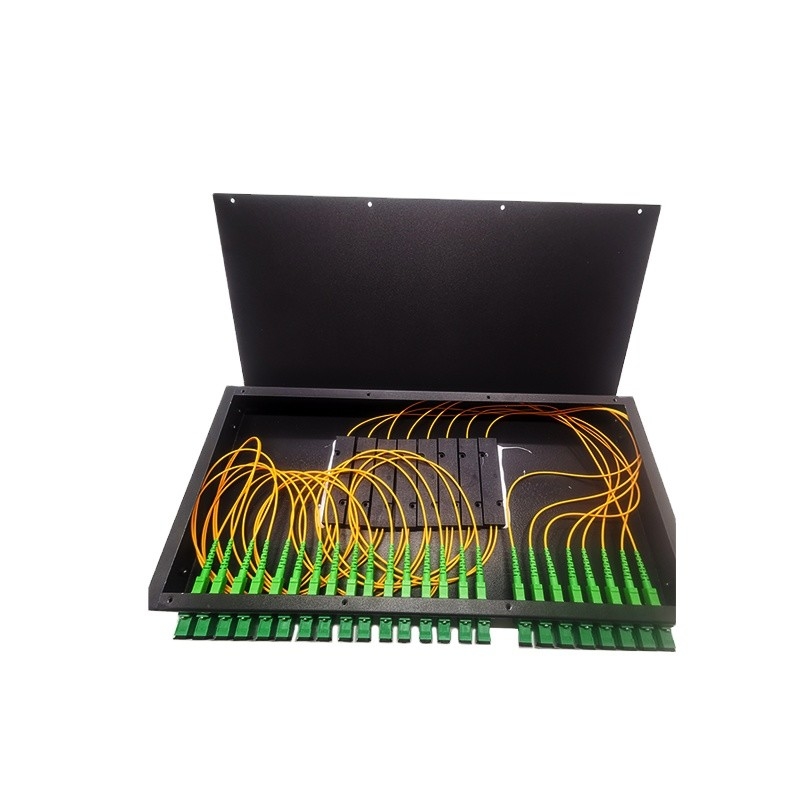

Rack mount 1U fiber optic odf 24 ports 24 cores fiber optic patch panel Install 8pcs 1X2 Splitter
1. Product Introduction
Dense wavelength division multiplexer(DWDM) is based on the membrane filter technique and proprietary non-flux metal bonding micro-optics packaging design, within ITU wavelengths to achieve uplink and downlink. It provides ITU channel center wavelength, low insertion loss, high channel isolation, low power consumption, wide passband characteristics, no glue loop, excellent thermal stability and reliability and so on. In a telecommunications network system, it can be used for uplink or downlink optical signal.
2. Technical Specifications
| Parameter | 4 Channel | 8 Channel | 16 Channel | ||||||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||||||
| Channel Wavelength(nm) | 1270~1610 | ||||||||||
| Center wavelength Accuracy(nm) | ±0.5 | ||||||||||
| Channel Spacing(nm) | 20 | ||||||||||
| Channel Pass band(@-0.5dB bandwidth (nm) | >14 | ||||||||||
| Insertion Loss(dB) | ≤1.4 | ≤2.6 | ≤5.0 | ||||||||
| Channel Uniformity (dB) | ≤0.5 | ≤0.5 | ≤0.5 | ||||||||
| Channel Ripple (dB) | 0.3 | ||||||||||
| Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 | ||||
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |||||
| Insertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||||||||||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||||||
| Polarization Dependent Loss (dB) | <0.1 | ||||||||||
| Polarization Mode Dispersion (PS) | <0.1 | ||||||||||
| Directivity (dB) | >50 | ||||||||||
| Return Loss(dB) | >45 | ||||||||||
| Maximum Power Handling(mW) | 500 | ||||||||||
| Operating Temperature(℃) | -5~+75 | ||||||||||
| Storage Temperature (℃) | -40~85 | ||||||||||
| Package dimension(mm) | 1. L100 x W80 x H10 ( 2 CH~8CH Module) | ||||||||||
| 2. L120xW800xH18 (9 CH~18CH Module) | |||||||||||
Remark: Above is without connectors,if with connectors,add more 0.2dB.
3. Application
4. Features
- Low Insertion Loss
- High Channel Isolation
- Optical path epoxy free
- Excellent thermal stability and reliability
- telcordia GR-1221 Compliance and RoHS Environmental Protection Standard
5. Order Information
| Configuration | Channel No. | Channel | Pigtail Type | Fiber length | Dimensio(mm) | Connector |
| M=Mux D=Demux |
04=4 Channel 08=8 Channel 16=16 Channel
N=N Channel …… |
27=1270nm 47=1470nm 49=1490nm …… 61=1610nm SS=special… |
0=250um 1=900um 2=2.0mm |
1=1m 2=1.5m 3=others |
1=L100 x W80 xH10 2=L120xW80xH18 3=19 1U Rack |
0=None 5=other |
-
MThis products and company is very well,fast feedback!
-
CLow Loss insertion,good quality!reliable supplier!
-
MThe product is highly cost effective,the company salesman have good service,professional!
