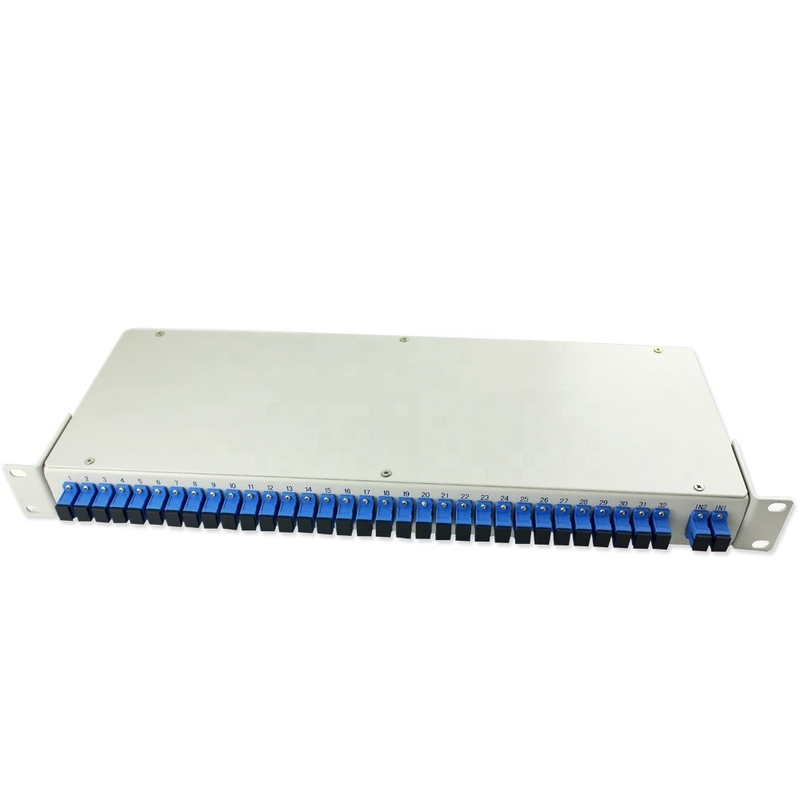

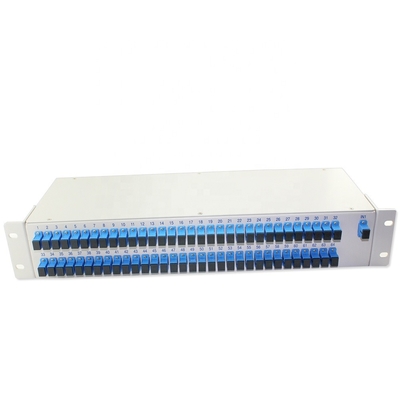

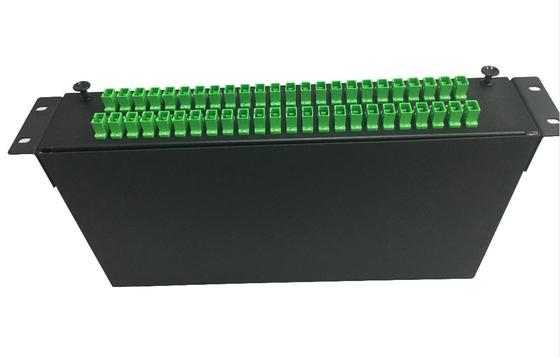

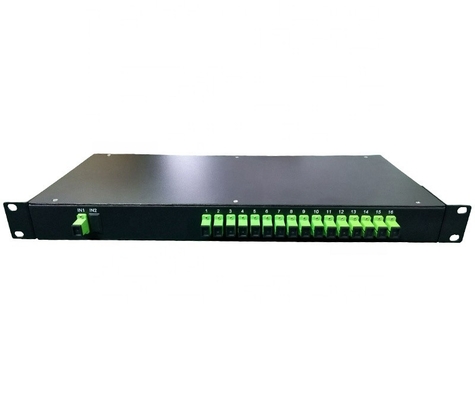

19" 1U 2U Fiber Optical 1x64 Rack Mount Patch Panels
| Type: | Fixed Rack Mounted | Apply port: | SC/FC/LC/ST |
| Capacity: | 1x8 / 1x16 / 1x32 | Hight: | 1U |
| Material: | Metal Aluminum | Outer carto weight: | 5pcs / Carton(1U) |
| High Light: | 1x64 Rack Mount Patch Panels,1x64 Fiber Optical Patch Panels,1x32 Rack Mount Patch Panels |
||
19" 1U 2U Fiber Optical 1x64 Rack Mount Patch Panels

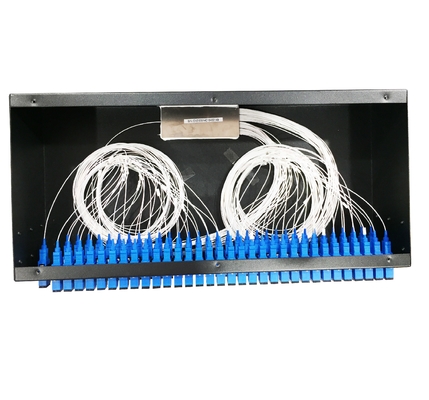

19" 1U 2U Fiber Optical PLC Splitter 1x8 1x16 1x32 1x64 Patch panel with SC connector Rack mounted
Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
With years of experience,CO-NET provides whole series of 1xN and 2xN splitters which are with good quality and competetive price.
* High return loss and Good repeatability
* Wide wavelength range
* FTTH project & FTTX Deployments
* CATV System
* GPON, EPON
* Fiber Optic Test Equipment
* Data-base Transmit Broadband Net
|
Item
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
|
Fiber Type
|
G.657.A
|
|||||
|
Working Wavelength
|
1260nm~1650nm
|
|||||
|
Standard Insertion Loss (dB)
|
≤4.2
|
≤7.6
|
≤10.7
|
≤14.0
|
≤17.2
|
≤20.8
|
|
Uniformity (dB)
|
≤0.6
|
≤0.8
|
≤0.8
|
≤1.0
|
≤1.5
|
≤2.0
|
|
PDL (dB)
|
≤0.2
|
≤0.2
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.4
|
|
Wavelength Dependent Loss(dB)
|
≤0.6
|
≤0.8
|
≤0.8
|
≤1.0
|
≤1.5
|
≤2.0
|
|
Return Loss (dB)
|
UPC≥50,APC≥55
|
|||||
|
Directivity (dB)
|
≥55
|
|||||
|
Operating Temp. Gange
|
-40℃~ +85℃
|
|||||
|
Item
|
2x2
|
2x4
|
2x8
|
2x16
|
2x32
|
2x64
|
|
Fiber Type
|
G.657.A
|
|||||
|
Working Wavelength
|
1260nm~1650nm
|
|||||
|
Standard Insertion Loss (dB)
|
≤4.4
|
≤8.0
|
≤11.0
|
≤14.6
|
≤17.8
|
≤21.0
|
|
Uniformity (dB)
|
≤0.8
|
≤1.0
|
≤1.2
|
≤1.5
|
≤1.8
|
≤2.0
|
|
PDL (dB)
|
≤0.2
|
≤0.2
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.4
|
|
Wavelength Dependent Loss(dB)
|
≤0.8
|
≤1.0
|
≤1.2
|
≤1.5
|
≤1.8
|
≤2.0
|
|
Return Loss (dB)
|
UPC≥50,APC≥55
|
|||||
|
Directivity (dB)
|
≥55
|
|||||
|
Operating Temp. Gange
|
-40℃~ +85℃
|
|||||
|
Encapsulation Size
|
||||||
|
Item
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
|
Length*Width*Height(mm)
|
482*160*44.5
|
482*160*89
|
||||
|
Item
|
2x2
|
2x4
|
2x8
|
2x16
|
2x32
|
2x64
|
|
Length*Width*Height(mm)
|
482*160*44.5
|
482*160*89
|
||||
-
