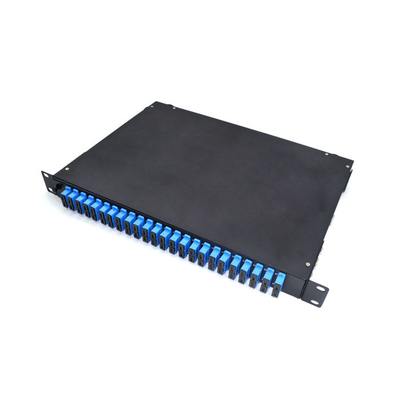

Sliding Type Rack Mount Patch Panels
| Type: | Ratation | Apply port: | SC/FC/LC/ST |
| Capacity: | 12 24 48 72 96 Ports | Material: | Metal |
| Packing: | 5pcs One Carton Box | Color: | Black , White , Grey |
| High Light: | Sliding Type Rack Mount Patch Panels,Rotation Rack Mount Patch Panels,ROSH Rack Mount Patch Panels |
||

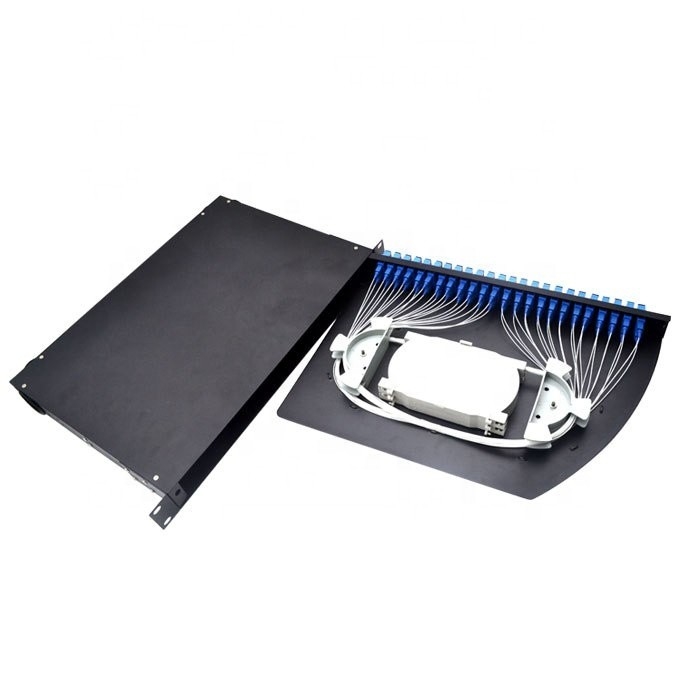

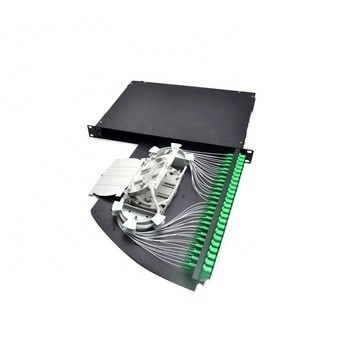

180 degree angle Rotation Sliding Type Outdoor 24 48 96 Port Fiber Optic Rack-mount
Introduction:
Fiber Optic FTTH Box:The terminal box realize the connection between the fiber optical cable and the pigtail, and protect the fiber optic spice. It suits for all the fiber optic cable with its diamater within Φ16 to 22 mm. It apply for indoor. Outdoor, CATV system, etc.
Features:
- 19" standard size , easy install
- Light weight, strong strength, good anti-shocking and dustproof
- Well cable management, cable can be distinguished easily
- Roomy space ensure fiber bent ratio
- Adapter fence can be installed or uninstalled
- Dustproof design,suitable for rack dustproof installaltion
- Compatible for most adaptors
- Easy to operate for revolving structure,rack mount
- Cold rolled steel sheet
- It can be widely applied for distribution and end connection of indoor cables
Fiber Optic Patch Panel Specification:
Dimension:450*277*45mm
Port Nos.: 24
N.G: 3.5Kg
Working Temperture: -45--+80 deg
| Type | Net size | Net weight | Outer carton size | Outer carton wight | Pcs per carton |
| GPZ/JJ-SSC24 | 450*277*45mm | 3.5kg | 485*400*350mm | 18 kg | 5 |
Application:
1. Telecommunication
2. CATV
3. LAN & WAN
4. Network
5. Broadband
-
