Double Armored Sheathed SM G652D Optical Fiber Cables
Basic Properties
Place of Origin:
Shenzhen,China
Brand Name:
Corning /CY COM
Certification:
ISO9001:2015,ISO14001:2015 SGS,ROSH
Model Number:
GYTA53
Trading Properties
Minimum Order Quantity:
1000M
Payment Terms:
T/T, Western Union
Supply Ability:
200KM Per week
Specifications
| Fiber type: | OS1 / OS2 / OM1 / OM2 / OM3 / OM4 | Jacket Material: | PE |
| Fiber quality: | 24 / 36 / 42 / 48 / 60 / 72 / 96 / 144 | Jacket Color: | Yelllow/Orange/Aqua/Customized |
| Cable diameter: | 17.5.5±0.5 Mm For 144core | Package: | Wooden Reel ,1km/roll |
| Certification: | ISO9001/CE/ROHS | Application: | Outdoor,Aerial |
| High Light: | G652D Optical Fiber Cables,G652D Double Armored Cables,G652D SM Optical Cables |
||
Product Description
Double Armored Sheathed SM G652D Optical Fiber Cables

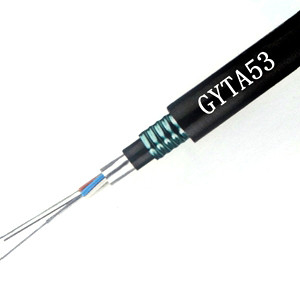

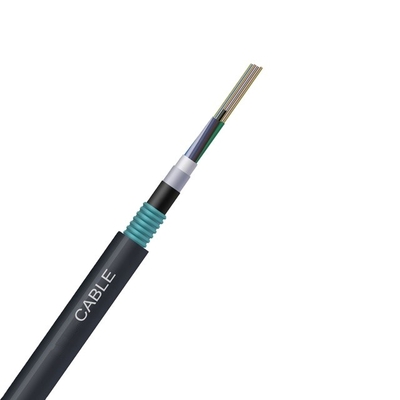

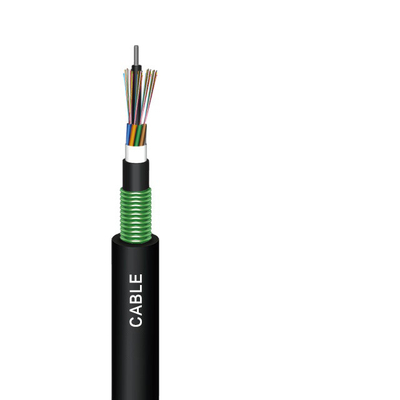

GYTA53 Double Armored and Double Sheathed Outdoor Fiber optic Cable
Discription:
The Underground Direct Buried Fiber Optic Cable GYTA53 are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.
Features:
- Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission, mechanical and environment performance.
- Aluminum tape coated with PE inner sheath and steel tape coated with PE outer jacket provides excellent water blocking performance.
- Good water blocking material prevents the cable from longitudinal water penetration.
- Double jacket design enhances the performance of crushing and water blocking.
Application:
These corrugated steel tape and aluminum tape armored and double sheath cables are suitable for installation in harsh environments
where mechanical impact on the cable is to be expected.e.g. in direct buried application. They are also suitable for installation
in ducts where the rodent resistance is to be expected or the moisture resistance is expected.

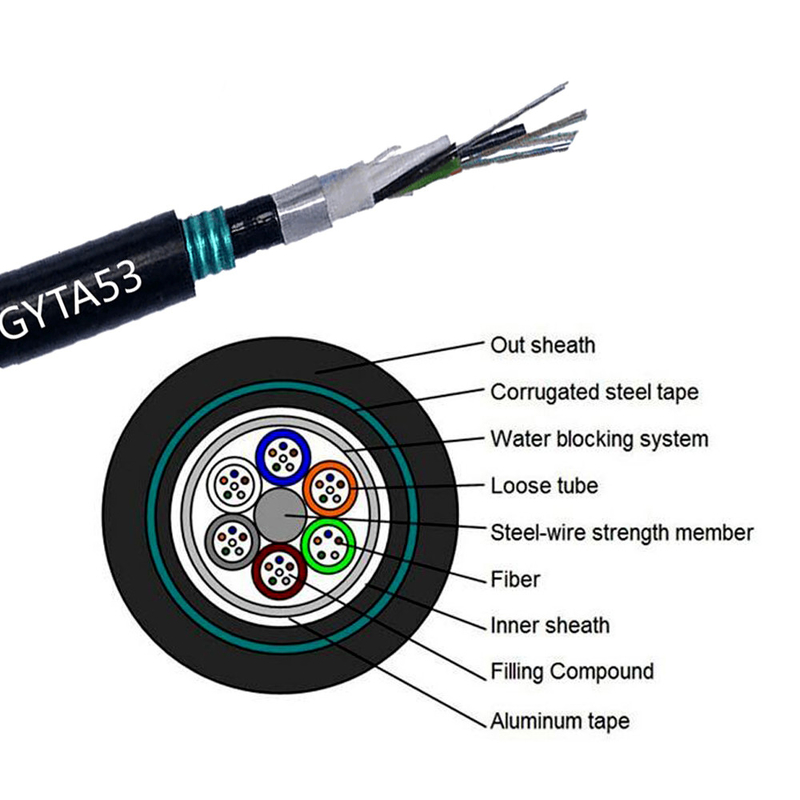

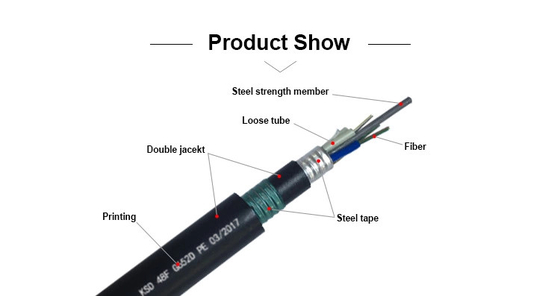

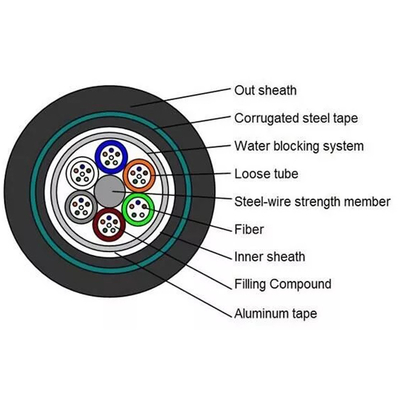

Cable performance:
| Item | Parameters | |
| Loose tube | Material | PBT |
| Color | All colors display | |
| Filler | Material | PE |
| Color | Black | |
| CSM | Material | Phosphating steel wire |
| Inner armoured | Material | Plastic coated aluminum strip |
| Inner jacket | Material | MDPE |
| Color | Black | |
| Outer armoured | Material | Plastic coated steel strip |
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 12.5 times cable diameter |
| Dynamic | 25 times cable diameter | |
| Repeating bending | Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. | |
| Tensile performance | Short term | 3000N |
| Crush | Short term | 3000N/100mm |
| Torsion | Load:250N; number of cycles:10; twist angle:±180° No obvious additionattenuation, no fiber break and no cable damage. | |
Dimensions of cable constructions:
|
Fiber count |
Structure | Fibers per tube |
Loose tube diameter (mm) |
Thickness of Inner jacket (mm) |
Thickness of outer jacket (mm) |
Cable diameter (mm) |
Cable weight (kg/km) |
| 12 | 1+6 | 6 | 1.7±0.1 | 0.9±0.1 | 1.8±0.1 | 12.8 ±0.5 | 164 |
| 24 | 1+6 | 6 | 1.7±0.1 | 0.9±0.1 | 1.8±0.1 | 12.8 ±0.5 | 165 |
| 48 | 1+6 | 12 | 2.0±0.1 | 0.9±0.1 | 1.8±0.1 | 13.8 ±0.5 | 190 |
| 96 | 1+8 | 12 | 2.0±0.1 | 0.9±0.1 | 1.8±0.1 | 15.4 ±0.5 | 234 |
Packing details:
| Cable type | Drum | ||||
|
Height (mm) |
Width (mm) |
Inner diameter (mm) |
Length (km) |
Drum type | |
| GYTA53-12 | 950 | 760 | 400 | 2 | Wooden drum |
| GYTA53-24 | 950 | 760 | 400 | 2 | Wooden drum |
| GYTA53-48 | 1100 | 760 | 500 | 2 | Wooden drum |
| GYTA53-96 | 1200 | 760 | 500 | 2 | Wooden drum |
