2.0mm FC Fiber Optic Connector Assembly
| Ferrule End-face: | UPC, APC(8°） | Ferrule brand: | CCTC |
| Boot diameter: | 0.9/2.0/3.0mm | Color: | Black / Red / Green / Customized |
| IL (Insertion Loss): | ≤ 0.3dB | RL (Return Loss): | ≥ 50dB |
| High Light: | 2.0mm Fiber Optic Connector Assembly,2.0mm fc Optic Connector Assembly,2.0mm Fiber Optic Connector Assembly |
||

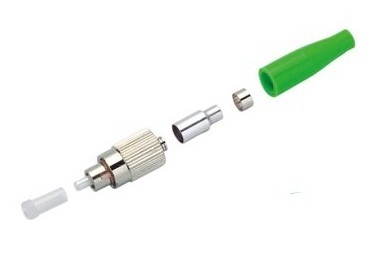

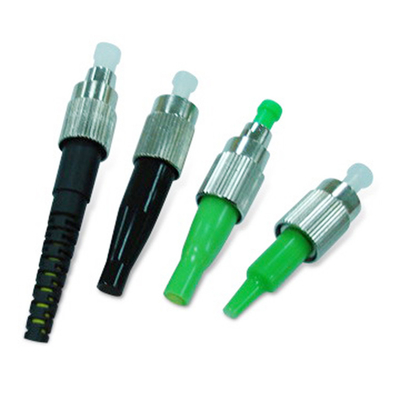

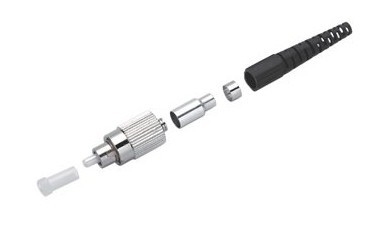

FC UPC/APC Fiber optic connector 0.9/2.0/3.0mm, pre-assembled
Features:
- High return loss
- Low insterion loss
- Telcordia style boots
- Compiance with TIA/IEA, IEC, RoHS
Applications:
- CATV, Metro, LAN
- Active device temination
- Telecommunication networks
- Industrial, medical, military
Ordering Information:
- Ferrule End-face: PC, UPC, APC
- Core Type: Single mode(SM: 9/125um), Multimode(MM: 50/125um or 62.5/125um)
- Core quantity: Simplex(SX), Duplex(DX)

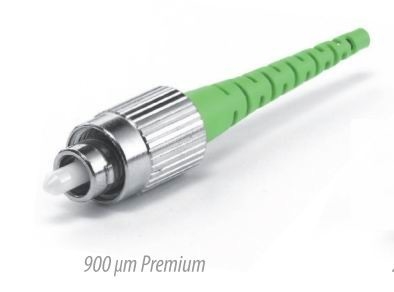

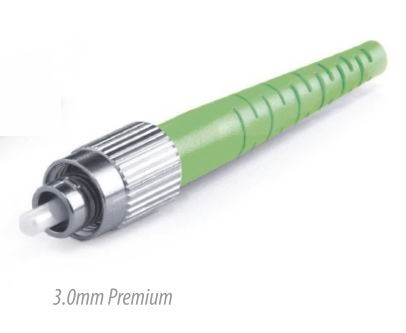

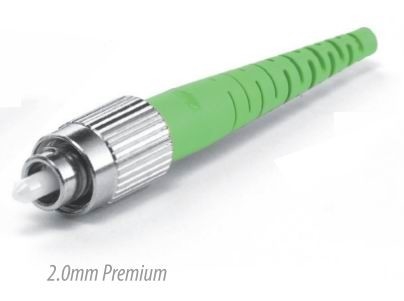

- Boot diameter: 0.9mm, 2.0mm, 3.0mm
- Color: Blue,Yellow,Green
| Item | UPC(Standard) | APC(Standard) |
| IL (Insertion Loss) | ≤ 0.3dB | ≤ 0.2dB |
| RL (Return Loss) | ≥ 50dB | ≥ 55dB |
| Operating Temperature |
-40 to 75
|
|
| Durability |
≤ 0.1dB typical change, 500matings
|
|
| Available Wavelength | SM=1310& 1550nm | |
-
LMeet the standard of Telcordia GR-1435-CORE compliant.
-
