OM3 OM4 LC PC Duplex SC Type Adapter Fiber Optics Accessories

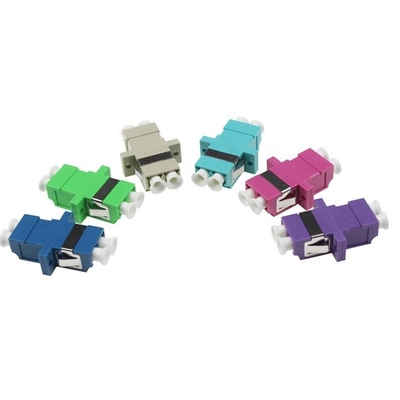

| Item: | LC-OM3-DX SC Type Adapter | Color: | Beige / Aqua / Purple / Violet |
| Structure: | Flange Or Flangeless | Test: | 100% |
| Materials: | FBT+PC | Ferrule material: | Ceramic |
| Cap color: | White | Fiber type: | Mutil Mode |
| High Light: | OM3 OM4 Duplex Fiber Optics Accessories,OM3 OM4 Duplex SC Type Adapter,LC PC Duplex SC Type Adapter |
||
LC PC OM3 OM4 Duplex SC Type Adapter Fiber Optics Accessories
Description:
Optical adapter are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the adapters of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.
CY COM could supply standard types of adapters, such as FC, SC, LC, ST, MU, MTRJ, MPO/MTP etc. Hybrid is also available.
CY COM adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.
Features:
Telcordia, TIA/EIA compliance
Low Insertion Loss
High Return Loss
Simplex, Duplex, Quad
High prcision alignment
Application:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV
| Connector Type | LC,FC,SC,MU,ST,MTRJ,Hybrid | |
| Fiber Type | Singlemode | Multimode |
| Insertion Loss | ≤0.2dB | |
| Return Loss | PC≥45dB;UPC≥50dB;APC≥60dB | ≥30dB |
| Durability | ≤0.2dB,after 1000times | |
| Operation Temperature | -40℃~+75℃ | |
| Storage Temperature | -40℃~+85℃ | |

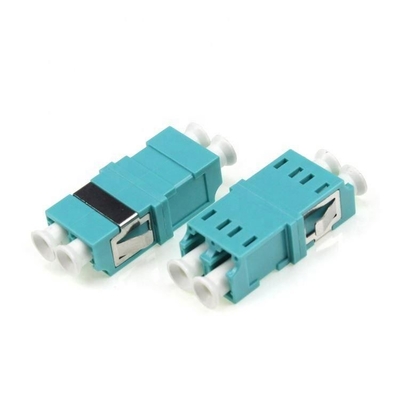

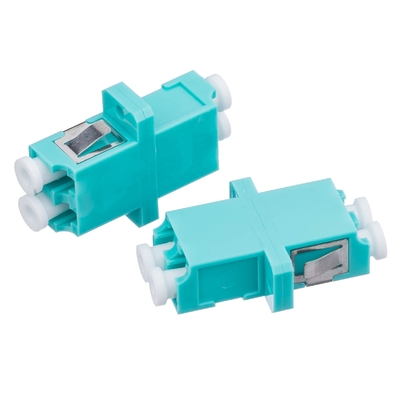

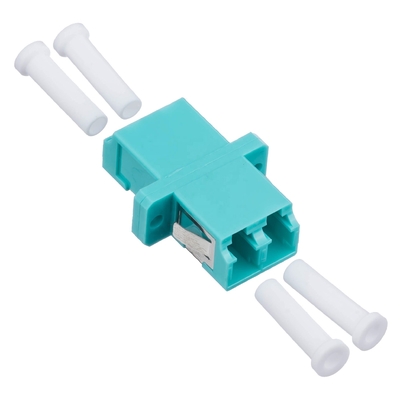

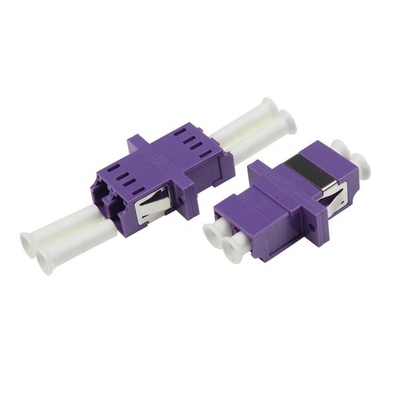

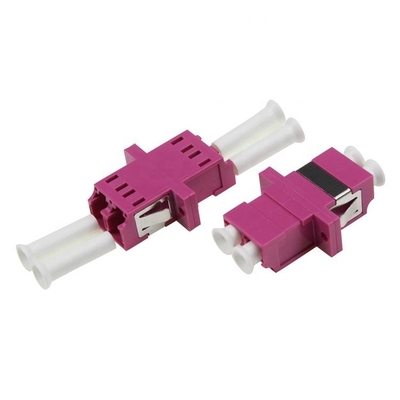

Pictures and Drawing(The Unit is mm):
-
LMeet the standard of Telcordia GR-1435-CORE compliant.
-
2Good quanlity,cooperate for long time,reliable!
-
HNice packing,delivery fast,satisfied.
