1M 40G QSFP+ To 4x10G SFP+ AOC Active Optical Cable

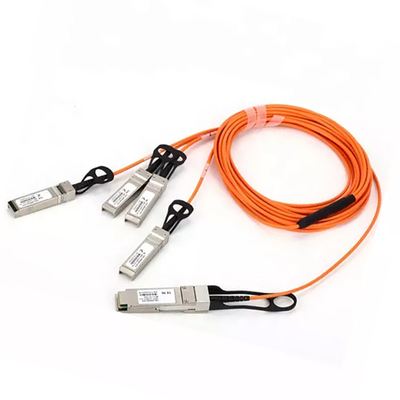

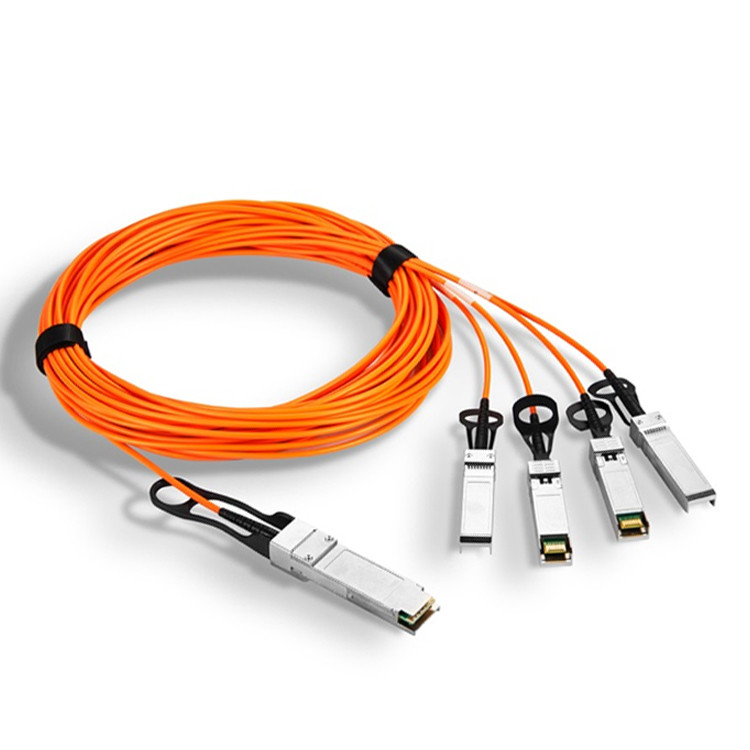

40GBASE QSFP+ to 4 x SFP+ Active Optical Cable is a 4 x 10 Gb/s parallel active optical cable for storage, data, and high performance computing inter-connectivity. It transmits four separate streams of 10 Gb/s data over ribbon cables in a point-to-multipoint configuration. The cable contains a QSFP+ module on one end and four separate SFP+ modules at the other ends.

Designed with MSA-compliant QSFP+ and SFP+ high-density connectors, these cables are compact, lightweight, and low power. With reaches up to 300 meters, the Fan-Out active optical cable is ideally suited for high-density 10G Ethernet, InfiniBand QDR, and other datacom and high-performance computing applications.

CY COM provides AOC compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, IBM, Gigamon, Linksys, Arista, HW and etc.

Features:

• Full Duplex 4 Channel 850nm Parallel Active Optical Cable
• Transmission data rate up to 10.3Gbit/s per channel
• Reliable VCSEL and PIN photonic devices
• Hot pluggable electrical interface
• Differential AC-coupled high speed data interface
• Available lengths (in meters): 1, 2, 3... 50...
• Commercial temperature range: 0 to 70°C
• Single 3.3V power supply
• Low power consumption: less than 1.5 W per end
• I2C standard management interface
• Excellent high speed signal integrity
• Complies with QSFP+ MSA high-density form factor
• Compliant to industrial standard SFF-8436 QSFP+ active optical modules
• RoHS-6 Compliant

• InfiniBand QDR (4 x 10G)
• 40G Ethernet
• Fibre Channel
• PCI-Express, SAS/SATA, Fibre Channel compatible interconnect
• Proprietary high speed, high density data transmission
• Switch and router high speed backplane interconnect
• High performance computing, server and data storage
