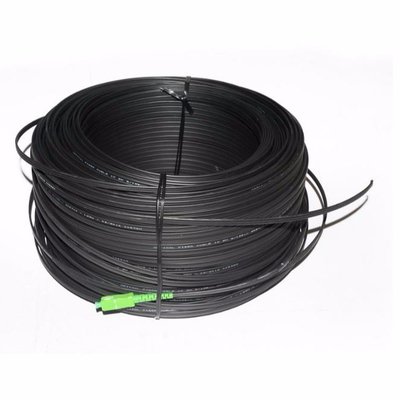

SC APC 1F Simplex Single Mode G657A1 Fiber Optic Pigtail

Large Image : SC APC 1F Simplex Single Mode G657A1 Fiber Optic Pigtail

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	CY COM
Certification:	ISO9001:2015 , ISO14001:2015, RoHS,SGS
Model Number:	SC/APC

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiable
Packaging Details:	PE bag or plastic box and Carton box
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000pcs per day

Contact Now

Detailed Product Description

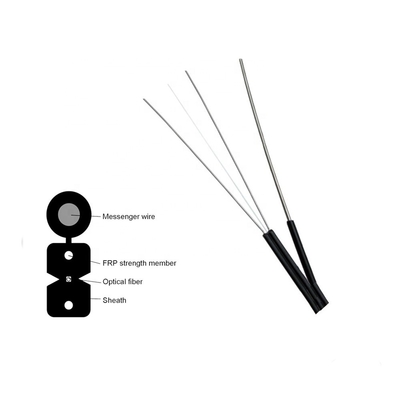

Model Number:	Pigtail SX SC APC 110M	Fiber Type::	G657A Or G652D
Jacket Color::	Black Or White	Jacket Material::	LSZH
Dimension::	(5.1±0.1)mmX(3.0±0.1)mm	Strength Member::	FRP& Steel Wire
Connector Type::	SC/APC Or SC/UPC	Application:	FTTH FTTB FTTX Network
Highlight:	G657A1 Fiber Optic Pigtail , SC APC Single Mode Pigtail , 1F Simplex Pigtail

SC APC 1F Simplex Single Mode G657A1 Fiber Optic Pigtail

FTTH SC APC 1F Simplex Single Mode G657A1 Pigtail Fiber Optic

Description:

FTTH patch cord /pigtails are used for linking the equipment and components in the fiber optic network. They are with various kinds of fiber optic connector types. The fiber optic patch cord types are classified by the fiber optic connector types. For example, we name SC fiber optic patch cord because this cable is with SC fiber optic connector. There are PC, UPC, APC type fiber patch cord. They are different because of the polish of fiber connector.

Features :

Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing

Application:

FTTH,LAN,PON & Optical CATV.

Telecom Net

Optical Fiber Communication System

Parameters

Item	Specification
	Single mode	Multi-mode
Return Loss	UPC≥50dB,APC≥60dB	≥40dB
Isertion Loss	≤0.3dB
Repeatability	≤0.1dB
Interchange	≤0.2dB
Fiber Count	1/2 Core
Insert & Draw Time	≥1000
Operating Temperature	-40~+85℃
