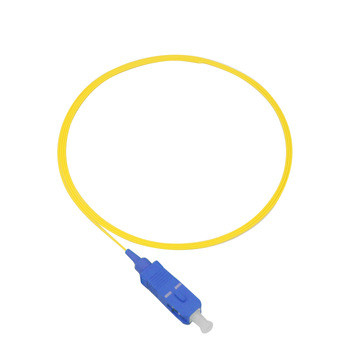

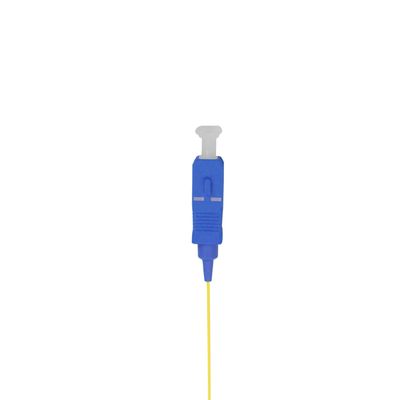

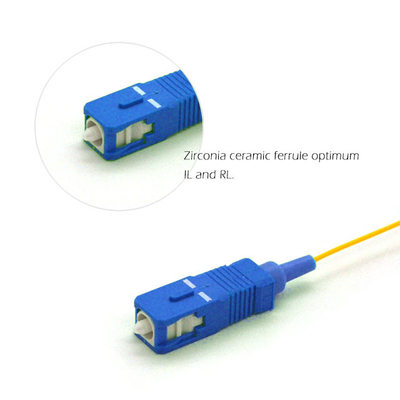

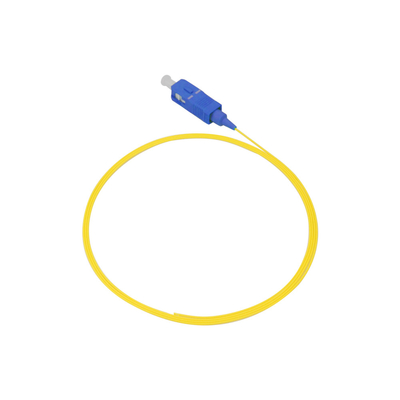

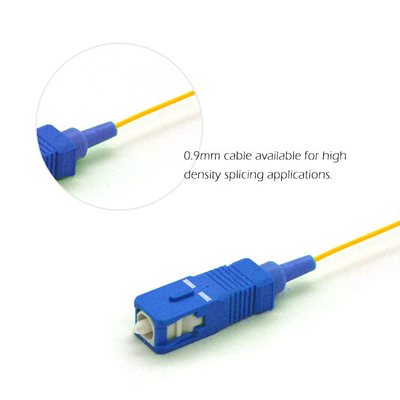

Low Insertion Loss 1.5m SC UPC Fiber Optic Pigtail

Basic Properties
Place of Origin: Shenzhen China
Brand Name: CY COM
Certification: ISO9001:2015 , ISO14001:2015, RoHS,SGS
Model Number: SC/UPC
Trading Properties
Minimum Order Quantity: 10PCS
Price: 0.2USD-0.3USD
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000pcs per day
Tags

fiber optics cable connectors

fiber optic fc connector

optical fibre pigtail
Specifications
Length: 1.5m Or Customized Certification: RoHS,ISO9001
Cable color: White,yellow,blue Or Customer Request Fiber type: G652D/G657A1/G657A2 Etc.
Connector: SC Ferrule End-face: UPC
Cable diameter: 0.9mm/2.0mm/3.0mm Return loss: >50dB
High Light:

1.5m SC UPC Fiber Optic Pigtail

,

1.5m UPC Fiber Optic Pigtail

,

1.5m SC Fiber Optic Pigtail
Product Description
Low Insertion Loss 1.5m SC UPC Fiber Optic Pigtail

SC/UPC fiber optic pigtail ,0.9mm LSZH Environmental Jacket,Low insertion loss IL≤0.2dB


Description:
Fiber optic pigtail are suited for equipment jumper cord, cross connects, and work area connections. All patch cables are manufactured using riser grade cable and are factory tested to make sure performance to meet Telcordia standards.

Features :
Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss
Good in repeatability and exchangeability
High dense connection, easy for operation

Application:
Telecommunication
Computer networks
CATV networks Active device termination
Instrumentation

Specification:
Parameter Insertion loss(typical) Return loss Operating wavelength Exchangeability Vibration Operating temperature Storage temperature
unit dB dB nm dB dB ℃ ℃
SC UPC ≤0.3 ≥50 1310, 1490,1550 ≤0.2 ≤0.2 -40~75 -45~85
APC ≤0.3 ≥60



Order Information:



1. Connector type: SC, LC, ST, FC, E2000, MTRJ, MU, DIN, D4

2. Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3(50/125um), OM4(50/125um)

3. Cable count: Simplex or Duplex, bundle pigtail, ribbon pigtail

4. Diameter of cable: 3.0mm(2.8mm), 2.0mm(1.8mm), 0.9mm

5.Cable length: 2Meter, 5Meter, 10Meter, customized length

6. Cable color: Yellow for SM, Orange for OM1 & OM2, Aqua for OM3, Violet for OM4, customized color

7.Outer jacket:PVC Riser cable, PVC Plenum cable, LSZH cable





Low Insertion Loss 1.5m SC UPC Fiber Optic Pigtail 0

Low Insertion Loss 1.5m SC UPC Fiber Optic Pigtail 1

Low Insertion Loss 1.5m SC UPC Fiber Optic Pigtail 2
