Communication Cable Sc APC Upc Sm Sx Fiber Optic Patch Cord for FTTH

Description:

Fiber Optic Patch Cable is also known as Fiber Optic Jumper or Fiber Optic Patch Cord. It is composed of a fiber optic cable terminated with different connectors on the ends.

For the Fiber Patch Cables, there are two major application areas which are computer work station to outlet and fiber optic patch panels or optical cross connect distribution center.

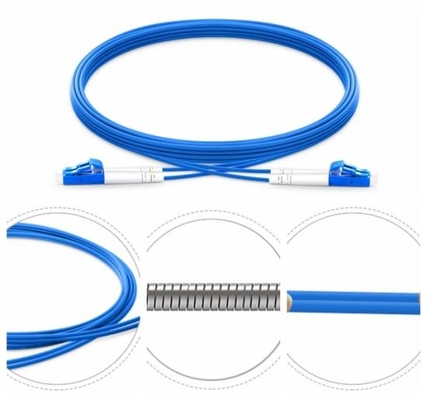

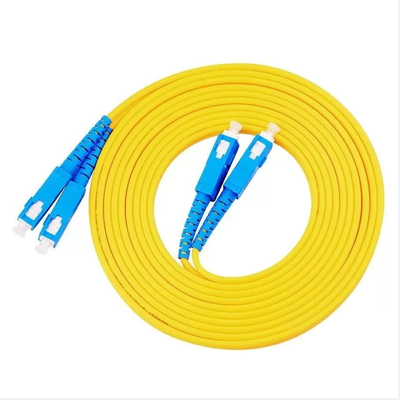

We provide various types of fiber patch cords including single mode, multimode, multi core, and armored versions. You can aslo find fiber optic pigtails and other special patch cables

here, even we supply MPO/MTP fiber cables.Our Fiber Patch Cables are standard terminated with LC/SC/ST/FC/MTRJ/MU/SMA connectors on both ends.

Features
. 100% tested on optical performance (Insertion Loss Customer specified length & Return Loss)
. Standard colour is Yellow, Orange, Aqua or Purple, other colours available upon request
. Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH)
. PC, UPC, APC connectors type available

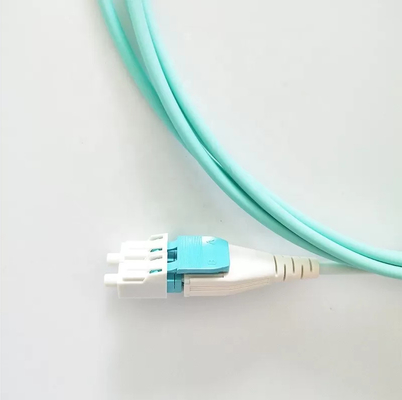

. High concentricity 2.5mm ceramic ferrule for FC, ST, SC and 1.25mm ceramic ferrule for LC and MU
. Available in G652D, G657A, OM1, OM2, OM3 and OM4
. Position A/Position B markings
. Available in 0.9mm, 1.6mm, 2.0mm, 3.0mm sizes

Application:

CATV

LAN and Access Network

Telecom, Gigabit Data Network

Testing and Medical equipments

Industry and Military applications



Specification



Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657)	MM(OM1/OM2/OM3/OM4/OM5)
Materials	UPC, APC
Connector Type	FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Loss(dB)	≤0.25dB	≤0.3dB
TIA/EIA-455-107	(PC/UPC/APC)	(PC/UPC)
Return Loss(dB)	≥50dB (PC/UPC)	≥40dB (PC/UPC)
TIA/EIA-455-107	≥60dB(APC)
Exchange-ability	≤0.2dB

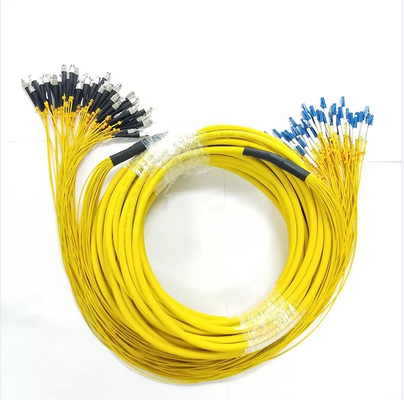

Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature(°C)	-10~+70
Storage Temperature(°C)	-40~+85

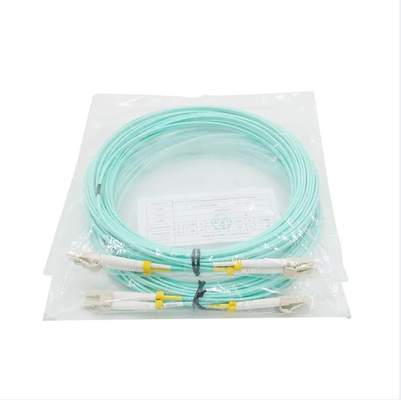

Package	1pieces/bag
