Product Details:
Payment & Shipping Terms:
|
| Product Name: | MPO Fiber Optic Patch Cord | Cable Shape: | Round / Ribbon |
|---|---|---|---|
| Cable Materia: | LSZH / PVC | Cable Color: | Blue |
| Polarity: | A/B/C | Connector Type: | Female /Male |
| Highlight: | OM3 MPO MTP Patch Cord,Optical OM3 Patch Cord,24 Core MPO MTP Patch Cord |
||

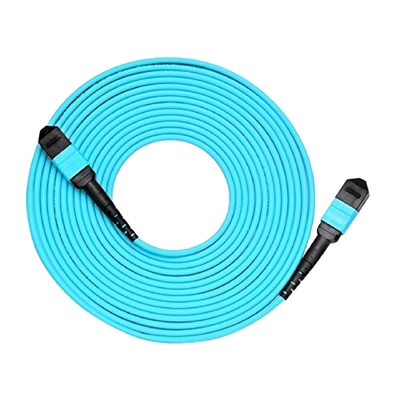

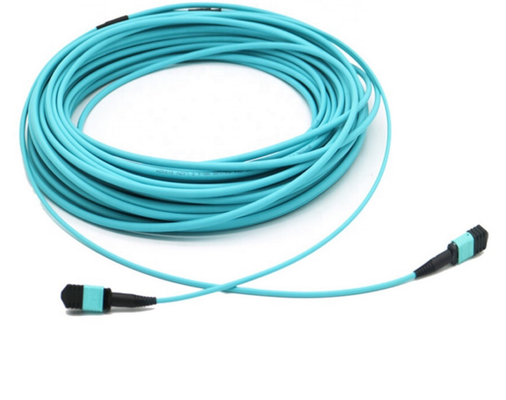

MPO/MTP Patch cord Connector 8core 12core 24core OM3 Fiber Optical
Description
MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning MDA, HAD and EDA zones, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration.
MPO/MPT trunk cables using a compact and rugged microcable structure, according to different colors divided into SM, MM and 10G MM. The fiber ranges from 12 to 144, MTP polarity options are TIA way is Style A(up), Style B(down) and Style C(up/up). The cable length belongs to a custom product, please kindly email your requirements to us!
Features
· With 12-fiber and 24-fiber MPO/MTP connector standard
· Available in OS1/2, OM2, OM3 and OM4
· Available in FC,LC, SC, ST, MU, and MTP
· Interface polished type has PC, UPC and APC
· Available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers
· 100% factory tested
· Discrete connectors are heat-cured and use ceramic ferrules and sleeves

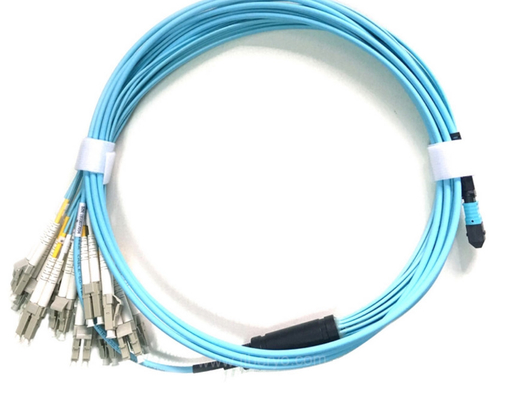

· Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
· Customized for length, staggering, connector type, breakout style, fiber count, and labeling fiber
Applications:
◆ Data Centre Infrastructure
◆ Storage Area Network-Fiber Channel
◆ Emerging 40 & 100Gps Protocols
Pre-terminated MPO/MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
ype C Cross Pair MPO/MTP Trunk Cable:
Key-Up to Key-Down Adapters and 2x A to A Duplex Patch Cable.
Specification
| MPO/MTP Termination | ||||
| Type | Single mode(APC polish) | Multi mode(PC polish) | ||
| Fiber count | 8, 12, 24 etc. | 8, 12, 24 etc. | ||
| Fiber type | G652D, G657A1 etc. | OM1, OM2, OM3, OM4 etc. | ||
| Maximum Insertion Loss | Standard | Elite Low Loss | Standard | Elite Low Loss |
| ≤0.75 dB | ≤0.35 dB | ≤0.75 dB | ≤0.35dB | |
| Return Loss | ≥55 dB | N/A | ||
| Working Temperature | -40℃ ~ 80℃ | -40℃ ~ 80℃ | ||
| Test Wavelength | 1310nm | 850nm | ||
| All MM SM shall be tested for IL | ||||
Above performance refers to Optic standard grade performance, flexible specification is available to fit for different installation needs.
Packing:
