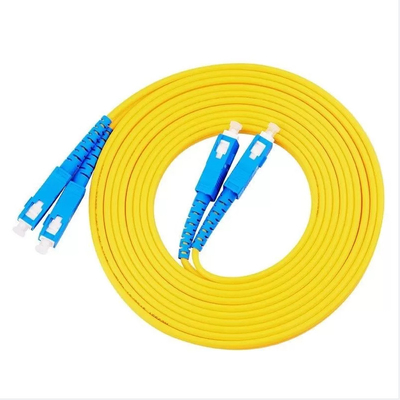

9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode

9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode
9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode
video play

Large Image :  9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode

Product Details:
Place of Origin: Shenzhen , China
Brand Name: CY COM
Certification: ISO9001:2015 , RoHS
Model Number: LC -SC
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Detailed Product Description
Product Name: Patch Cord, PC/UPC/APC Cable Color: Yellow Or Customized
Length: 1m,2m,3m Or Customized Model: Singlemode Or Multimode
Wavelength: 1310nm Or 1550nm Connector: FC,SC,LC,ST,MPO
High Light:

Singlemode Duplex Fiber Optic Patch Cord

,

Yellow Duplex Fiber Optic Patch Cord

,

Fiber Optic Patch Cord SC/UPC

High quality Single Mode 9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord



Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.



CUSTOM option

9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode 0



Physical Information

9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode 1



Product Description

9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode 29/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode 39/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode 49/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode 59/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode 6



More products

9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord Single Mode 7



Specification

Mode
SM
MM
Polish
UPC
APC
APC
Insertion Loss
Typical ≤0.2dB Maximum ≤0.3dB
≤0.25dB
Return Loss
≥50dB
≥65dB
≥35dB
Interchangeability
≤0.2dB
Repeatability
≤0.1dB
Durability
≤0.2dB (1000 times mating)
Tensile Strengh
> 10kg
Temperature
≤0.2dB (-40+85 sustain 100 hours)
Humidity
≤0.2dB (+25+65 93 R.H.100 hours)


Ordering options

1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized

7) Cable type: PVC, LSZH.
