G652D LC LC To UPC Duplex 2.0mm 2M Fiber Optic Jumper Cables
| Product Name: | Fiber Patch Cord | Cable Color: | Yellow Or Customized |
| Cable Dimension: | 0.9mm, 2.0mm,3.0mm | Connector: | LC/UPC |
| Wavelength: | 1310nm Or 1550nm | Cable Type: | G652D, G657A1,G657B3 |
| High Light: | fiber optic patch cable,fiber patch cord |
||
G652D LC LC To UPC Duplex 2.0mm 2M Fiber Optic Jumper Cables
Description:
Fiber Optic Patch Cord is important of optical network.They have same or different connectors which are installed on the end of fiber optic cable.The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Feature:
1. Price-Competitive
2. Low Insertion Loss & PDL
3. Factory-terminated and Tested
4. Fiber Options:G.652/G.657/OM1/OM2/OM3 and PM Panda Fiber
5. Connector Options :FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
6. Polishing Options:PC/UPC/APC
7. Feature Connector with Ceramic Ferrules
Specifications:
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657) | MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Loss (dB) | ≤0.25dB | ≤0.3dB |
| TIA/EIA-455-107 | (PC/UPC/APC) | (PC/UPC) |
| Return Loss (dB) | ≥50dB(PC/UPC) | ≥40dB(PC/UPC) |
| TIA/EIA-455-107 | ≥60dB(APC) | |
| Exchange-ability | ≤0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patch cord | |
| Operating Temperature (℃) | -10 ~ +70 | |
| Storage Temperature (℃) | -40 ~ +85 | |
| Package | 1 pieces/bag | |
| All values specified are with connectors | ||
(1)Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.
(2)Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,
2；IPQC inspects the production line to ensure that the production meets the quality requirements.
3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements
(3)Optical Test. Our products comply with IEC and ITU standards
(4)At least 30% spot test by Quality Assurance Department after the products finished.

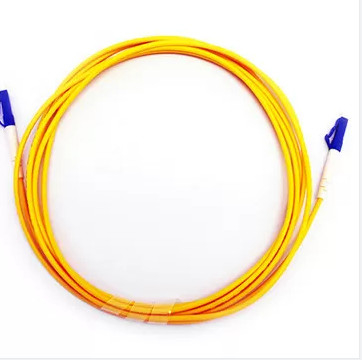

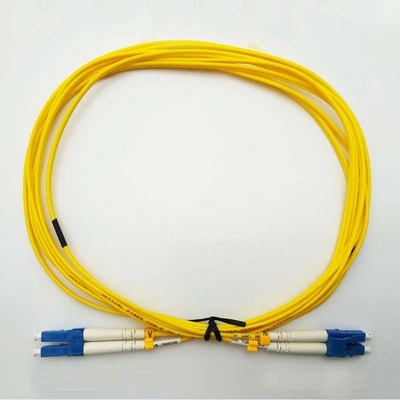

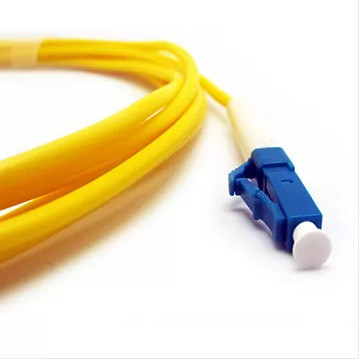

Product picture
Factory Picture
Packing
-
AGood Durability,have a dedicated after-sales team.
-
DNice appearance,good packing,excellent!
-
MThe Product portfolio have been upgraded,Production lead time had been optimized,more flexible.
