100G 72 Fiber OM3 MTP Patch Cord Aqua Cable Female / Male Type
| Polarity: | A/B/C | Connector Type: | Female /Male |
| Cable Color: | Aqua / Wathet Blue | Cable Material: | LSZH / OFNP / PVC |
| Cable Shape: | Round / Ribbon | Fiber Type: | OM3 OM4 |
| High Light: | 100G Aqua Fiber Patch Cable,72 Fiber Aqua Cable,OM3 Aqua Cable |
||
100G 72 Fiber OM3 MTP Patch Cord Aqua Cable

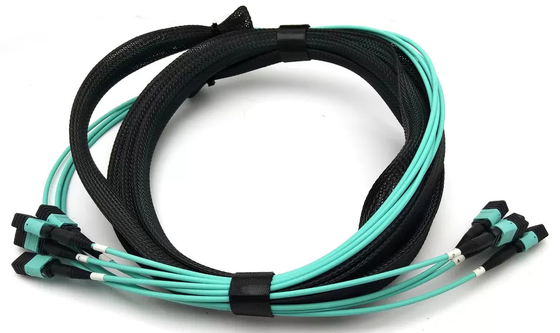

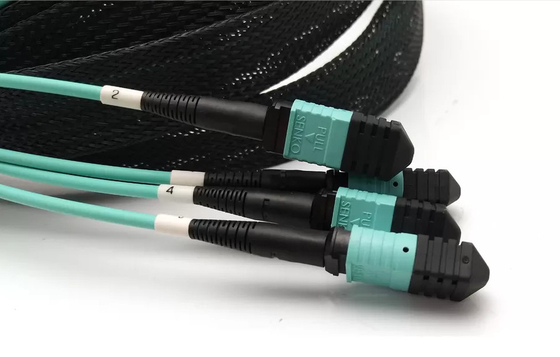

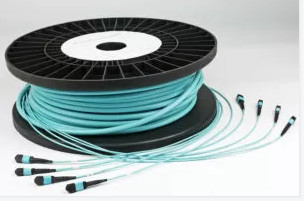

48Fiber 4 MPO to 4 MPO Truck Cable Mutilmode OM3 MTP Patch Cord Aqua Cable
MPO/MTP Fiber Cables assemblies are terminated with MPO/MTP connector on both end.
Features:
High Performance in IL & RL
4,8,12 and 24 fiber connector terminations and assemblies
Designed for low loss and standard loss SM and MM applications
Economical solution for mass-termination of fiber
Suitable for MPO/MTP application
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Applications:
MPO/MTP is the high density of optical fiber pre-connect system which is generally use in three areas.
· The data center application with high density environment
· The optical fiber to the building
· The internal connector application in fiber equipment such as Splitter,
· 40G / 100G SFP and SFP
Specification:
| Connector Type | 12-Fiber Or 24Fiber MPO/MTP (non-pinned) |
| Polish | PC(MM); APC(SM) |
| Housing Colour | MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow) |
| Insertion Loss, Typical (MTP/MPO) | ≤ 0.10 dB |
| Insertion loss, max. (MTP/MPO) | ≤ 0.3 dB |
| Return loss (MTP/MPO SM) | PC >55dB; APC> 60dB |
| Durability(500 Matings) | < 0.2dB |
| Fiber Cable Performance | |
| Fiber Type | OS2, OM1, OM2, OM3, OM4 OM5 |
| Fiber Count | 12,24,48,72,96,144 cores |
| Fiber Attenuation dB (OS2) | ≤0.38 Max ≤0.34Typ(1310nm) ≤0.25 Max ≤0.19Typ(1550nm) |
| Fiber Attenuation dB (OM1) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤1.2Typ(1300nm) |
| Fiber Attenuation dB (OM2) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm) |
| Fiber Attenuation dB (OM3) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm) |
| Fiber Attenuation dB (OM4) | ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm) |
| Min.Bandwidth:Overfilled Launch[Mhz-km] | OM1≥200(850nm) ≥500(1300nm) OM2≥500(850nm) ≥500(1300nm) OM3≥1500(850nm)≥500(1300nm)OM4≥3500(850nm) ≥500(1300nm) |
| Min.Bandwidth:Laser Effective Modal Bandwidth [Mhz-km] | |
| OM3 ≥2000(850nm) OM4 ≥4700(850nm) | |
| Outer diameter | 12fiber:3.0 or 5.5mm ; 24fiber:3.0 or 5.5mm |
| Outer jacket Colour | OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Purple or Aqua) |
| Outer jacket material | LSZH,OFNP,OFNR |
| Tensile strength | >500N |
| Operating Temperature | -40 ~ +85°C |
Associated Standards:
Meets IEC Standard 61754-7& JIS C5982
Structured cabling per TIA-568-C
Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- Infiniband Compliant
Infiniband
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Polarity Selection:
-
