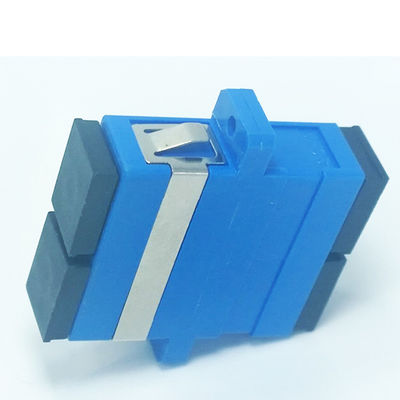

SC SM Duplex Green color APC 0.2dB CATV USE Fiber Optic Adapter
| material: | Plastic | color: | Green,blue |
| certificate: | ROHS, ISO | Insertion Loss (IL): | 0.2 |
| High Light: | st fiber adapter,optical fiber adapter |
||
APC 0.2dB Fiber Optic Adapter SC SM Duplex Green For CATV
Description
Fiber optic adapter is used for the connection and coupling between fiber active connectors. Choose proper type according to the splice of optical fiber active connector.Good agglomerati-
on technic to ensure the best quality,high intensity and stability.
Features
♦ Low insertion loss;
♦ Good repeatability and interchangeability;
♦ Good environmental stability.
Application
Optical fiber communcation network,data transmission,
test equitments,LAN,CATV.
| Sleeve Material: Ceramic or beryllium bronze; |
| Housing Material: Synthetic resin or alloy, with high precisemechanical dimensions, good compatibility; |
| Working Wavelength: 1200~1600nm |
| Working Condition: -40°C to +75°C; |
| Durability: less than 500 times repeated insert and pull out , insertion loss change≤0.20dB; |
| Repeatability: No more than 0.2dB ; |
| The adapters comply with the standard of NTT/Telcordia/IEC/TIA/EIA. |
| Mode: SM/APC Green SM/PC Blue MM/PC Beige MM/PC Light Green |
Ordering Information
For Example: LC-PC-SM-DX-no ear type-Plastic
Connector Type:FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule End-face:PC,UPC,APC
Core Type : Single-mode(SM:9/125μm), Multimode(MM:50/125μm or 62.5/125μm)
Structure / Material :“DX”means Duplex,“SX”means Simplex;
with ear type, no ear type;
copper alloy,Zinc alloy, Plastic.
-
