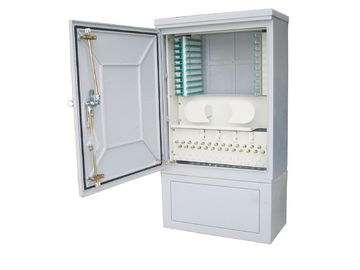

144 Cores Cross Connection Cabinet Cold-Rolled Steel , High Performance
| High Light: | fiber optic hand tools,fiber termination kit |
||
144 Cores Cross Connection Cabinet Cold-Rolled Steel , High Performance
Features
♦ High intensity and anti-erosion performance
♦ Able to counter abrupt climate change and extreme environment
♦ Capacity can be flexibly customized as required
♦ Installation is quick and convenient
♦ Built -in direct splice unit is capable for providing direct con-nection function.
♦ Perfect design of fiber wiring routing could facilitate manag-ement and maintenance of fibers
♦ With secure and reliable fastening and grounding protection devices for the optic fiber.
Material
SMC, Cold-rolled steel or stainless steel.Technical Parameters
♦ Operating temperature: -5~+40℃;
♦ Storage temperature: -40~+70℃≤0.5dB;
♦ Relative humidity:≤85%(+30℃);
♦ Atmospheric pressure: 70~106 KPa;
♦ Insertion loss: ≤0.2dB;
♦ Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC);
♦ Isolation resistance:≥1000MΩ/500V(DC);
♦ Durability:＞1000 times;
♦ Anti-voltage strength: ≥3000V(DC)/1min.
-
PThis products and company is very well,fast feedback!
-
MMeet the standard of Telcordia GR-1435-CORE compliant.
-
INice packing,delivery fast,satisfied.
